Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support

I'm Online Chat Now

Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support

Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support
Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support

Large Image :  Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support

Product Details:
Brand Name: Ruijie
Model Number: RG-MAP852-SF(V3)

Ruijie RG-MAP852-SF(V3) Wi-Fi 6 Wireless AP with High-Density Support

Description
Operating Temperature: 0°C To 40°C Warranty: 1 Year
Dimensions: 220mm X 220mm X 40mm Weight: 0.6kg
Number Of Antennas: 4 Power Supply: PoE Or AC/DC Adapter
Frequency Band: 2.4GHz/5GHz Maximum Data Rate: 1.167Gbps
Management Interface: Web-based, CLI, SNMP Antenna Type: Omni-directional
Power Consumption: 12W Security Protocols: WPA/WPA2, 802.1X, MAC Address Filtering
Highlight:

Ruijie Wi-Fi 6 Wireless AP

,

high-density wireless access point

,

Ruijie RG-MAP852-SF(V3) AP

Ruijie Wireless AP RG-MAP852-SF(V3) Wi-Fi 6 High-Density Support & Enterprise Security
Product Description

The Ruijie RG-MAP852-SF(V3) is a next-generation Wi-Fi 6 (802.11ax) wireless access point designed for high-density enterprise environments, delivering blazing-fast speeds, reliable connectivity, and advanced security. Ideal for offices, schools, hospitals, and smart venues, this AP ensures seamless wireless performance with dual-band 3.55Gbps throughput, MU-MIMO, and OFDMA technology for efficient multi-user handling.

Key Features
  • Wi-Fi 6 Technology - Supports 2.4GHz (574Mbps) + 5GHz (2.97Gbps) for ultra-fast, low-latency connections
  • High-Density Optimization - Handles 200+ concurrent users with intelligent load balancing and beamforming
  • Enterprise-Grade Security - Features WPA3 encryption, rogue AP detection, and AI-powered threat prevention
  • Cloud & Local Management - Manage via Ruijie Cloud or RG-IS platform for remote monitoring and troubleshooting
  • Flexible Deployment - 802.3at PoE support, wall/ceiling mountable, and IPv6-ready
Technical Specifications
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Max Speed 3.55Gbps (2.4GHz: 574Mbps + 5GHz: 2.97Gbps)
Antenna Built-in high-gain smart antennas
Concurrent Users 200+
Security WPA3, MAC filtering, WIDS/WIPS
Management Ruijie Cloud, RG-IS, SNMP
PoE Support 802.3at (PoE+)

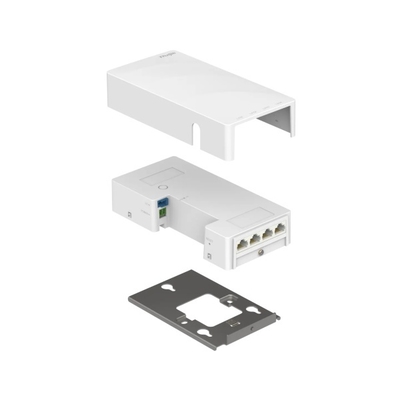

Mounting Ceiling/wall mount
Product Attributes
Attribute Value
Operating Temperature 0°C to 40°C
Warranty 1 year
Dimensions 220mm x 220mm x 40mm
Weight 0.6kg
Number Of Antennas 4
Power Supply PoE or AC/DC adapter
Frequency Band 2.4GHz/5GHz
Maximum Data Rate 1.167Gbps
Management Interface Web-based, CLI, SNMP
Antenna Type Omni-directional
Power Consumption 12W
Security Protocols WPA/WPA2, 802.1X, MAC address filtering
Why Choose Ruijie RG-MAP852-SF(V3)?
  • Future-Proof Wi-Fi 6 Performance - Ideal for 4K streaming, VoIP, and IoT deployments
  • AI-Driven Optimization - Auto-adjusts channels/power to avoid interference
  • Scalable for Large Networks - Seamless roaming and centralized management

Upgrade your wireless infrastructure with Ruijie's enterprise-grade Wi-Fi 6 AP—engineered for speed, reliability, and security.
