Ruijie RG-AP180C Wi-Fi 6 Wireless AP with Cloud Management

Large Image : Ruijie RG-AP180C Wi-Fi 6 Wireless AP with Cloud Management

Product Details:

Brand Name:	Ruijie
Model Number:	RG-AP180C

Contact Now

Ruijie RG-AP180C Wi-Fi 6 Wireless AP with Cloud Management

Description

Dimensions:	200mm X 200mm X 38mm	Operating Temperature:	0°C To 40°C
Frequency Band:	2.4GHz/5GHz	Power Consumption:	12W
Mounting Options:	Ceiling/Wall Mount	Power Supply:	PoE Or DC
Antenna:	Internal Antenna	Model:	RG-AP1100
Security Features:	WPA/WPA2, MAC Filtering, VLAN	Weight:	0.5kg
Wireless Standards:	IEEE 802.11a/b/g/n/ac	Management Interface:	Web, CLI, SNMP
Ethernet Ports:	2 X 10/100/1000Mbps	Maximum Data Rate:	1200Mbps
Highlight:	Ruijie Wi-Fi 6 wireless AP , cloud-managed wireless access point , Ruijie RG-AP180C access point

High-Density Wi-Fi 6 & Secure Cloud Management - Ruijie Wireless AP RG-AP180C

Product Specifications

Attribute	Value
Dimensions	200mm x 200mm x 38mm
Operating Temperature	0°C to 40°C
Frequency Band	2.4GHz/5GHz
Power Consumption	12W

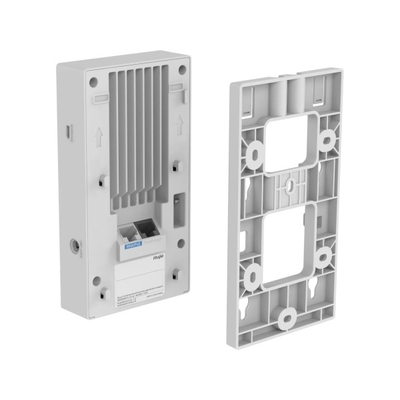

Mounting Options	Ceiling/Wall Mount
Power Supply	PoE or DC
Antenna	Internal Antenna
Model	RG-AP1100
Security Features	WPA/WPA2, MAC Filtering, VLAN
Weight	0.5kg
Wireless Standards	IEEE 802.11a/b/g/n/ac
Management Interface	Web, CLI, SNMP
Ethernet Ports	2 x 10/100/1000Mbps
Maximum Data Rate	1200Mbps

Product Overview

The Ruijie Wireless AP RG-AP180C is an enterprise-grade Wi-Fi 6 (802.11ax) access point designed for high-density environments such as offices, schools, and healthcare facilities. With dual-band concurrent operation (2.4GHz & 5GHz), MU-MIMO, and OFDMA technology, it delivers faster speeds, lower latency, and superior multi-device performance, supporting 100+ concurrent connections without congestion.

Key Features & Benefits

Wi-Fi 6 Efficiency: Boosts throughput by up to 4x compared to Wi-Fi 5, ideal for 4K video, VoIP, and IoT applications.
Smart RF Optimization: Auto-adjusts channels and power to minimize interference.
Enterprise Security: Supports WPA3 encryption, captive portal, and VLAN isolation for secure BYOD and guest access.
Cloud & Centralized Management: Easily deploy and monitor via Ruijie Cloud or local controllers, reducing IT workload.
Flexible PoE Powering: 802.3af/at compliant for easy installation with a single Ethernet cable.

Technical Specifications

Parameter	Specification
Wi-Fi Standard	802.11ax (Wi-Fi 6)
Frequency Bands	2.4GHz & 5GHz (Dual-band)
Max Speed	1.775Gbps (5GHz: 1.2Gbps + 2.4GHz: 575Mbps)
Antennas	Built-in high-gain omni-directional
Concurrent Users	100+
Security	WPA3, 802.1X, MAC filtering
Management	Ruijie Cloud, SNMP, CLI
PoE Support	802.3af/at (Power over Ethernet)
Mounting	Wall/Ceiling

Ideal Use Cases

Corporate offices: Seamless roaming for laptops and mobile devices.
Education: Stable connectivity for e-learning and video streaming.
Healthcare: Reliable coverage for medical IoT devices.
Retail/Hospitality: Secure guest Wi-Fi with captive portal.

Optimized for scalability and future-proof performance, the Ruijie RG-AP180C ensures high-speed, secure, and manageable wireless networking for modern enterprises.
