Switching Capacity: | 176Gbps | Number Of Ports: | 48 |
---|---|---|---|
Model: | RG-S5750-H | Power Supply: | AC 100-240V |
Dimensions: | 440mm X 44mm X 220mm | Vlan Support: | Yes |
Redundancy Features: | STP, RSTP, MSTP | Management Interface: | Web, CLI, SNMP |
Link Aggregation: | Yes | Forwarding Rate: | 130.9Mpps |
Power Consumption: | Max. 40W | Qos Support: | Yes |
Port Type: | 10/100/1000Base-T | Security Features: | Port Security, MAC Address Filtering, 802.1x Authentication |
Highlight: | Reliable Ruijie Switch,12-Port Gigabit Ruijie Switch,Advanced Security Ruijie Switch |
Reliable Ruijie Switch With RapidRing Redundancy & Advanced Security 12-Port Gigabit

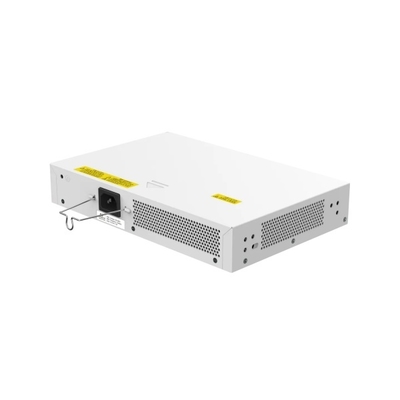

The Ruijie RG-SF2910-4GT2XS-P is a high-performance 12-port Gigabit Layer 2 managed switch designed for SMBs, enterprise branches, and secure networks. Featuring 8x 10/100/1000Base-T ports + 4x Gigabit SFP slots (Combo ports), it delivers 16Gbps switching capacity for seamless high-bandwidth applications like video surveillance, VoIP, and cloud services.
Enterprise Reliability – Supports RapidRing technology (sub-20ms failover) and STP/RSTP/MSTP for loop prevention, ensuring 99.99% uptime.
Advanced Security – 802.1X, ACL, DHCP Snooping, and port security protect against cyber threats like ARP spoofing.
Smart Management – Web GUI, CLI, and SNMP v3 for easy monitoring, with QoS prioritization (DSCP/802.1p) for lag-free voice/video.
Future-Ready – IPv6 support and energy-efficient design (IEEE 802.3az) reduce long-term costs.
Parameter | Details |
---|---|
Ports | 8x 10/100/1000Base-T, 4x Gigabit SFP (shared Combo) |
Switching Capacity | 16Gbps |
Forwarding Rate | 11.9Mpps |
VLAN | 802.1Q (4K VLANs) |
Redundancy | RapidRing, STP/RSTP/MSTP |
Security | ACL, 802.1X, Port Security, DHCP Snooping |
Management | Web, CLI, SNMP v1/v2c/v3 |
Power Supply | 100-240V AC (external redundant PSU optional) |
Dimensions | 440mm x 180mm x 44mm (1U) |
Cost-Effective – Balances enterprise features with SMB-friendly pricing.
Easy Deployment – Plug-and-play setup, ideal for secure office networks or PoE extensions (with PoE models).
Trusted Brand – Ruijie’s localized support ensures quick troubleshooting in Asia-Pacific markets.
Perfect for secure campus networks, retail POS systems, or ISP access layers. [Contact us] for bulk quotes or configuration guides!
