Stacking Capability: | Up To 8 Units | Number Of Ports: | 48 |
---|---|---|---|
Dimensions: | 440mm X 44mm X 220mm | Mac Address Table Size: | 32K |
Poe Support: | Yes | Power Supply: | AC 100-240V |
Management Interface: | Web, CLI, SNMP | Port Type: | 10/100/1000Base-T |
Vlan Support: | Yes | Forwarding Rate: | 130.95Mpps |
Switching Capacity: | 176Gbps | Power Consumption: | Max 40W |
Highlight: | 10G Uplink Ruijie Switch,Enterprise Networks Ruijie Switch,Advanced Security Ruijie Switch |

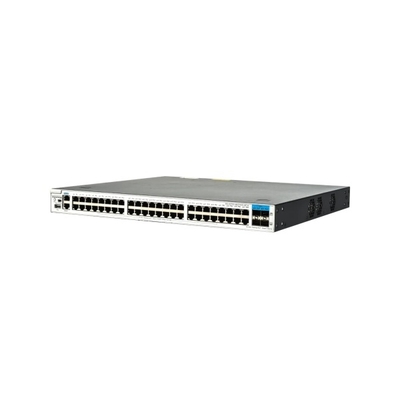

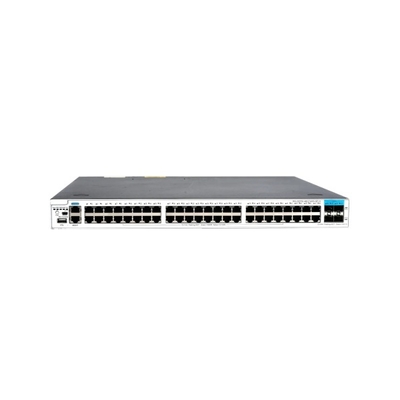

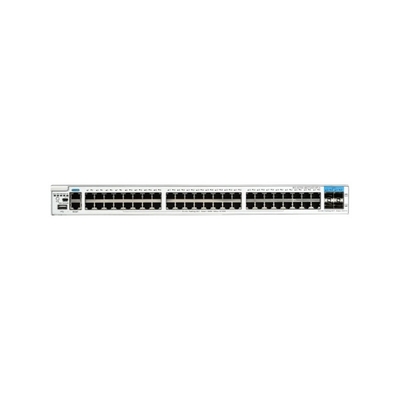

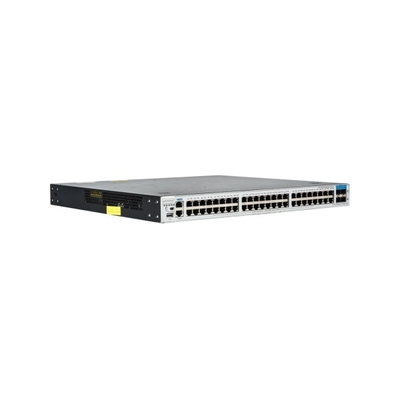

This next-generation 48-port Gigabit Ethernet switch is designed for enterprise networks, data centers, and campus environments. Featuring 4x 10G SFP+ uplink ports, this high-performance Layer 3 switch delivers scalable bandwidth, robust security, and intelligent management for demanding business applications.
Parameter | Specification |
---|---|
Ports | 48x Gigabit RJ45, 4x 10G SFP+ |
Switching Capacity | 176 Gbps |
Forwarding Rate | 132 Mpps |
Stacking | iStack (up to 8 switches) |
Security Features | ACLs, 802.1X, DHCP Snooping, IP-MAC Binding |
Management | CLI, Web, SNMP, Cloud (RIIL) |
Power Supply | Dual hot-swappable PSUs (optional) |
Ideal for medium-to-large enterprises, the RG-S5750-48GT4XS-HP-H combines high-density Gigabit access, 10G future-proofing, and military-grade security in a single rack-mounted unit. Its scalable architecture supports SDN (VXLAN/EVPN) and automated cloud management, making it perfect for digital transformation projects.
Upgrade your network with Ruijie's cutting-edge switching technology—contact us today for pricing & deployment support!
