High-Performance Ruijie Switch With 48G Ports 10G Uplinks - Reliable Layer 3 Switching For Enterprise Networks

Large Image : High-Performance Ruijie Switch With 48G Ports 10G Uplinks - Reliable Layer 3 Switching For Enterprise Networks

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S5750C-48GT4XS-X

Contact Now

High-Performance Ruijie Switch With 48G Ports 10G Uplinks - Reliable Layer 3 Switching For Enterprise Networks

Description

Port Number:	48	Weight:	3.5 Kg
Poe Support:	Yes	Dimensions:	440mm X 44mm X 220mm
Management Interface:	Web, CLI, SNMP	Forwarding Rate:	104.16 Mpps
Power Supply:	AC 100-240V	Switching Capacity:	176 Gbps
Qos Support:	Yes	Vlan Support:	Yes
Packet Buffer:	4 MB	Port Speed:	10/100/1000 Mbps
Highlight:	10G Uplinks Ruijie Switch , Reliable Layer 3 Ruijie Switch , 48G Ports Ruijie Switch

High-Performance Ruijie Switch With 48G Ports & 10G Uplinks - Reliable Layer 3 Switching For Enterprise Networks

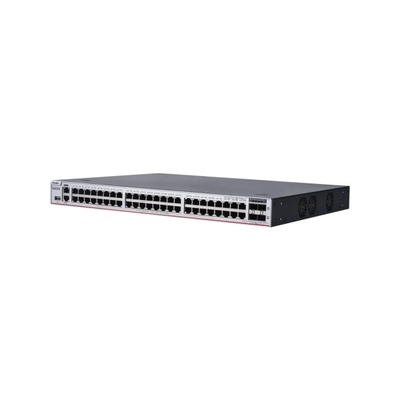

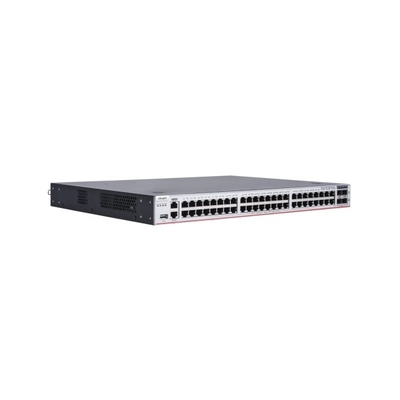

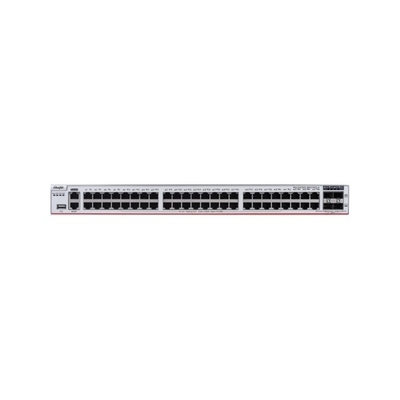

The Ruijie RG-S5750C-48GT4XS-X is a high-performance Layer 3 managed switch designed for enterprise networks, data centers, and campus environments. With 48x Gigabit Ethernet ports and 4x 10G SFP+ uplinks, it delivers scalable bandwidth, advanced security, and intelligent management for demanding business applications.

Key Features & Benefits

High-Speed Connectivity - 48x 10/100/1000Mbps RJ45 ports + 4x 1G/10G SFP+ slots for flexible uplinks
Enterprise-Grade Performance - 336Gbps switching capacity & 252Mpps forwarding rate for seamless data flow
Layer 3 Routing Support - Static routing, OSPF, RIP, and VRF for efficient network segmentation
Advanced Security - ACLs, 802.1X authentication, DHCP Snooping, and IP Source Guard to prevent attacks
Cloud & Smart Management - Supports sFlow, SNMP, CLI, and Web GUI, compatible with Ruijie cloud platforms
High Reliability - ERPS ring protection (<50ms failover) and optional dual power supplies for 24/7 uptime

Technical Specifications (Summary)

Model	Ruijie RG-S5750C-48GT4XS-X
Ports	48x 1G RJ45, 4x 10G SFP+
Switching Capacity	336Gbps
Forwarding Rate	252Mpps
Layer 3 Features	Static/OSPF/RIP, VXLAN, IPv6
Security	ACL, 802.1X, Anti-ARP Spoofing
Management	CLI, Web, Cloud, SNMP, sFlow
Power Options	AC, Dual PSU (Optional)

Ideal Use Cases

Enterprise Core/Access Layer - High-density Gigabit access with 10G aggregation

Data Center Edge - Low-latency switching with virtualization support

Campus Networks - Secure, scalable connectivity for schools and offices

This Ruijie switch balances performance, security, and manageability, making it a cost-effective solution for modern networks. Upgrade to 10G-ready infrastructure with reliable Layer 3 routing and robust QoS for VoIP, video, and cloud applications.
