Ruijie Switch RG-S6110 High-Performance 48-Port Gigabit With 40G Uplink Advanced Security For Enterprise Networks

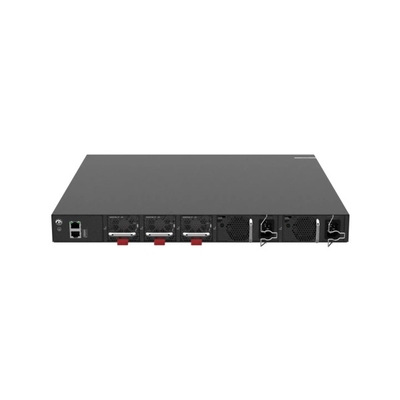

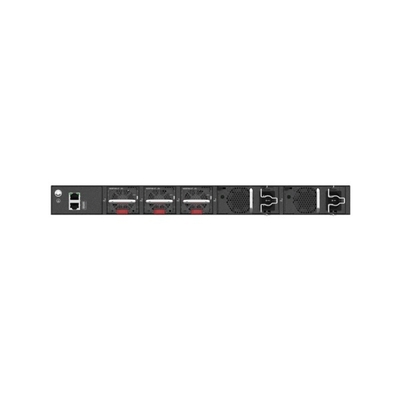

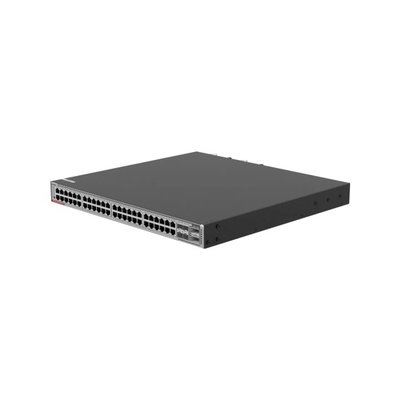

Large Image : Ruijie Switch RG-S6110 High-Performance 48-Port Gigabit With 40G Uplink Advanced Security For Enterprise Networks

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S6110-48MG4VS2QXS-UP

Contact Now

Ruijie Switch RG-S6110 High-Performance 48-Port Gigabit With 40G Uplink Advanced Security For Enterprise Networks

Description

Warranty:	5 Years	Humidity:	10% To 90% (non-condensing)
Number Of Ports:	24	Forwarding Rate:	41.7Mpps
Dimensions:	440mm X 220mm X 44mm	Model:	RG-S2910G-E
Power Consumption:	Max 20W	Mac Address Table Size:	16K
Switching Capacity:	56Gbps	Power Supply:	AC 100-240V, 50/60Hz
Weight:	2.5kg	Operating Temperature:	0°C To 40°C
Vlan Support:	Yes	Port Type:	10/100/1000Mbps Ethernet
Highlight:	RG-S6110 48-Port Gigabit Switch , Ruijie Switch RG-S6110

Ruijie Switch RG-S6110 High-Performance 48-Port Gigabit With 40G Uplink & Advanced Security For Enterprise Networks

The Ruijie RG-S6110-48MG4VS2QXS-UP is a high-performance enterprise-grade switch designed for demanding network environments, offering 48 Gigabit Ethernet ports, 4x 10G SFP+ uplinks, and 2x 40G QSFP+ ports for ultra-high-speed connectivity. Ideal for data centers, enterprise core networks, and campus deployments, this switch delivers scalable bandwidth, advanced security, and robust reliability to support high-traffic applications.

Key Features & Benefits

High-Speed Connectivity: 48x 1G ports + 4x 10G SFP+ + 2x 40G QSFP+ for flexible, future-proof networking.
Layer 3 Routing Support: Full dynamic routing (OSPF, BGP) for efficient inter-VLAN and WAN communication.
Enterprise-Grade Security: ACLs, 802.1X authentication, anti-ARP spoofing, and port isolation for secure access.
Advanced QoS & Traffic Management: Prioritize critical applications (VoIP, video) with DSCP/802.1p policies.
High Availability: Dual power supply (optional), ERPS (<50ms failover), and LACP for redundancy.
Cloud & SDN Ready: Supports Ruijie's RG-NCOS management and open APIs for automation.

Technical Specifications

Category	Specification
Ports	48x 10/100/1000M RJ45, 4x 10G SFP+, 2x 40G QSFP+
Switching Capacity	176 Gbps (full duplex)
Forwarding Rate	131 Mpps
Power Supply	AC, optional dual PSU
Security Features	ACL, RADIUS/TACACS+, IP Source Guard, DHCP Snooping
Management	Web, CLI, SNMPv3, RG-NCOS, OpenFlow (SDN)

Ideal Use Cases

Enterprise Core Networks: High-density Gigabit access with 40G backbone links.
Data Center Edge: Low-latency server connectivity and virtualization support.
Campus Networks: Secure, scalable infrastructure for Wi-Fi 6 and IoT deployments.

Optimized for performance, security, and scalability, the Ruijie RG-S6110 switch ensures seamless connectivity for modern business networks. Contact our team for pricing and deployment solutions!
