2.5G Uplink Fanless Ruijie Switch - 16 Port Gigabit Web Managed For Business / SMB

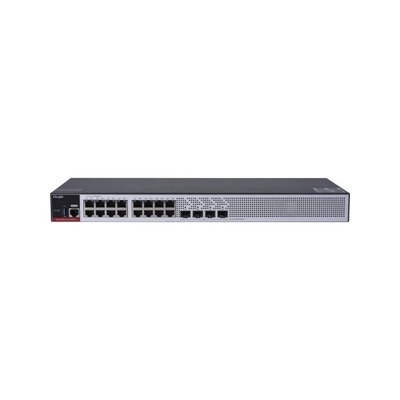

Large Image : 2.5G Uplink Fanless Ruijie Switch - 16 Port Gigabit Web Managed For Business / SMB

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S2906-16GT4MS-L

Contact Now

2.5G Uplink Fanless Ruijie Switch - 16 Port Gigabit Web Managed For Business / SMB

Description

Forwarding Rate:	Up To 104.16Mpps	Ports:	24/48
Management Interface:	Web, CLI, SNMP	Vlan:	Support
Power Supply:	AC 100-240V, 50/60Hz	Poe:	Optional
Speed:	10/100/1000 Mbps	Weight:	2.5kg
Qos:	Support	Dimensions:	440mm X 44mm X 220mm
Switching Capacity:	Up To 140.8Gbps	Security Features:	Port Security, MAC Address Filtering, ACL
Highlight:	Fanless Ruijie Switch , Business SMB Ruijie Switch

2.5G Uplink & Fanless Ruijie Switch - 16-Port Gigabit Web Managed For Business/SMB

The Ruijie RG-S2906-16GT4MS-L is a high-performance 16-port Gigabit web-managed switch designed for businesses, hotels, and SMBs seeking a reliable, high-speed, and noise-free networking solution. With 2.5G uplink ports, fanless cooling, and advanced security features, this switch ensures smooth data transmission, energy efficiency, and easy cloud-based management.

Key Features & Benefits

2.5G Uplink Ports (4× SFP Slots) - Supports 2.5G/1G fiber uplinks, delivering higher bandwidth for video surveillance, Wi-Fi 6 backhaul, and high-density data transfers compared to traditional 1G switches.
Silent & Energy-Efficient (Fanless Design) - Noiseless operation (0dB) with natural heat dissipation, ideal for offices, hotels, and quiet environments.
Enhanced Security & Stability:
- CPU Protection (CPP) - Prevents malicious traffic from overloading the CPU.
- Rapid Loop Detection (RLDP) - Automatically detects and blocks network loops to prevent broadcast storms.
- 10KV Port Lightning Protection - Reduces surge damage risks.
Cloud & Web Management - Supports remote configuration, batch deployment, and real-time monitoring via Ruijie Cloud, reducing on-site maintenance needs.
Flexible Deployment - Rack-mountable (1U), wall-mountable, or desktop placement for versatile installation.

Technical Specifications

Feature	Specification
Ports	16× 10/100/1000BASE-T, 4× 1G/2.5G SFP
Switching Capacity	336Gbps
Forwarding Rate	51Mpps
Power Consumption	≤15.6W (Energy-efficient)
Cooling	Fanless (Silent)
Security Features	CPP, RLDP, NFPP, STP/RSTP/MSTP
Management	Web, CLI, SNMP, Ruijie Cloud
Dimensions	440×220×43.5mm (1U Rack-Mountable)

Ideal Use Cases

Business Offices - Quiet operation with high-speed uplinks for seamless connectivity.

Hotel & Hospitality - Reliable, low-noise networking for guest Wi-Fi & IPTV.

Retail & Surveillance - 2.5G uplinks handle multiple IP cameras without bandwidth bottlenecks.

Upgrade your network with Ruijie's 16-port managed switch—combining speed, silence, and smart cloud management for SMBs!
