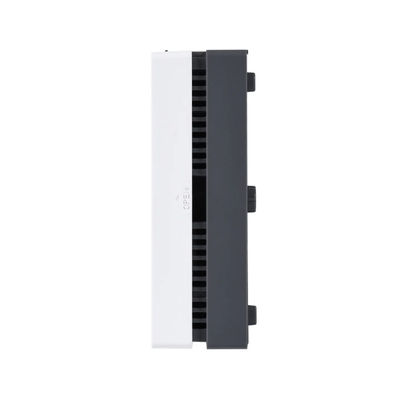

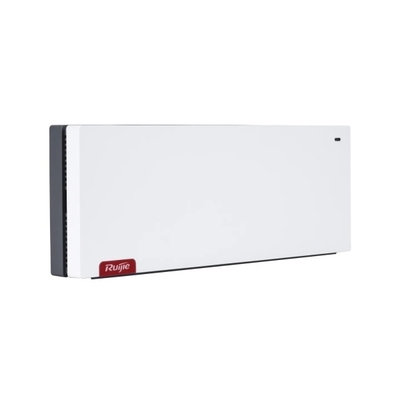

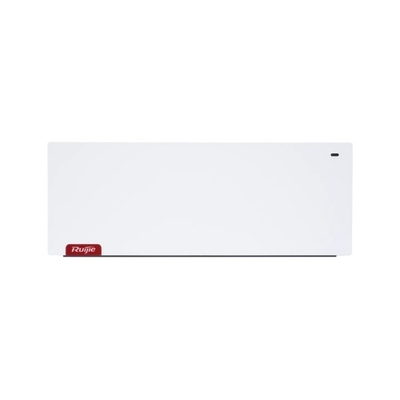

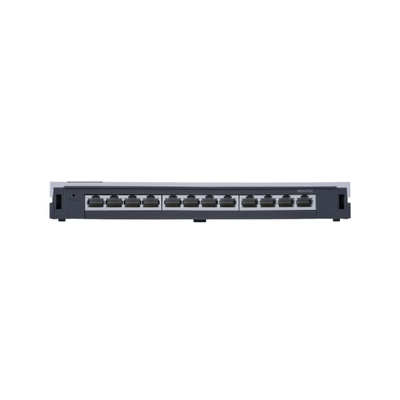

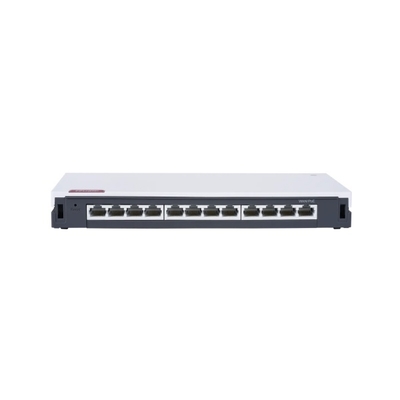

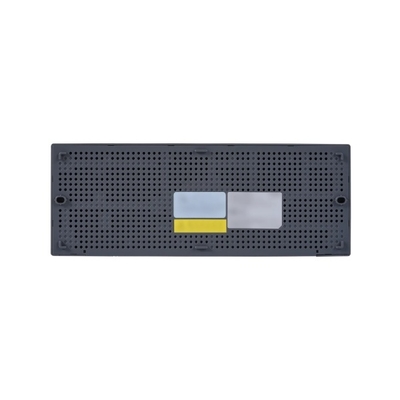

12 Port Gigabit PoE+ 4 SFP Slots Ruijie Switch Layer 2 Managed Cloud Web Management

Large Image : 12 Port Gigabit PoE+ 4 SFP Slots Ruijie Switch Layer 2 Managed Cloud Web Management

Product Details:

Brand Name:	Ruijie
Model Number:	M7000L-12GT-RU

Contact Now

12 Port Gigabit PoE+ 4 SFP Slots Ruijie Switch Layer 2 Managed Cloud Web Management

Description

Product Power Consumption:	< 80W	Product Forwarding Rate:	261.9Mpps
Product Throughput:	176Gbps	Product Model:	RG-S5750E
Product Qos:	8 Queues Per Port	Product Vlan:	4K
Product Switching Capacity:	352Gbps	Product Power Supply:	AC: 100V-240V, 50/60Hz; DC: -48V
Product Type:	Layer 2/3 Switch	Product Size:	1U
Product Port:	4810/100/1000Base-T+410G SFP+	Product Warranty:	5 Years
Product Humidity:	5% To 95% (non-condensing)	Product Operating Temperature:	0°C To 45°C
Highlight:	Layer 2 Gigabit PoE+ Switch , Cloud Gigabit PoE+ Switch , 12-Port Gigabit PoE+ Switch

12-Port Gigabit PoE+ & 4 SFP Slots Ruijie Switch Layer 2 Managed Cloud & Web Management

The Ruijie 12-Port Gigabit PoE+ Switch is a high-performance Layer 2 managed networking solution designed for SMBs, enterprise edge deployments, and IP surveillance systems. Featuring 12× Gigabit PoE+ ports (802.3at/af) and 4× SFP fiber uplinks, this switch delivers flexible connectivity, robust power delivery, and advanced management for modern networks.

Key Features & Benefits

High-Power PoE+ Support - Each of the 12× RJ45 ports delivers up to 30W PoE+, ideal for IP cameras, VoIP phones, and wireless APs without external power adapters.
Dual Uplink Options - 4× SFP slots support 1G fiber modules for long-distance backbone connections or high-speed uplinks.
Layer 2 Smart Management - Supports VLAN, QoS, LACP, STP/RSTP, and 802.1X authentication for secure, optimized traffic control.
Cloud & Web Management - Easily configure via intuitive web GUI or Ruijie Cloud Platform for remote monitoring and multi-device management.
Energy-Efficient & Silent - Fanless design reduces noise while IEEE 802.3az EEE minimizes power consumption.
Industrial-Grade Reliability - Wide operating temperature (-5°C~45°C) and 6kV surge protection ensure stable performance in harsh environments.

Technical Specifications

Category	Specifications
Ports	12× 10/100/1000M PoE+ (802.3at/af), 4× SFP
PoE Budget	Up to 240W total (30W per port)
Switching Capacity	32Gbps
Forwarding Rate	23.8Mpps
Management	Web, CLI, SNMP, Cloud
Security	802.1X, ACL, Port Security, DHCP Snooping
Dimensions	440×220×44mm (Rack-mountable)
Power Supply	100-240V AC, 50/60Hz

Ideal Use Cases

IP Surveillance - Power multiple PoE cameras with reliable bandwidth.

Office Networks - Connect VoIP phones, APs, and workstations seamlessly.

Industrial IoT - DIN-rail or rack-mountable for factory/warehouse deployments.

With advanced QoS, PoE scheduling, and cloud-ready management, the Ruijie 12-Port PoE+ Switch ensures scalable, secure, and high-performance networking for growing businesses.
