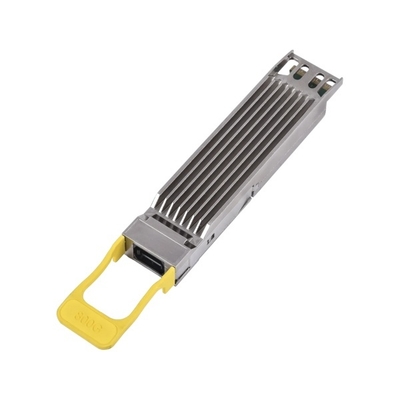

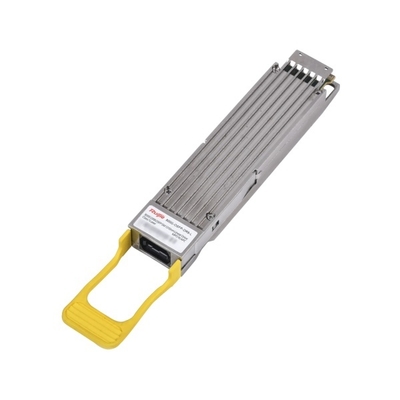

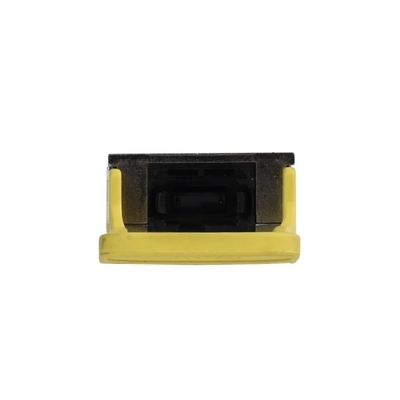

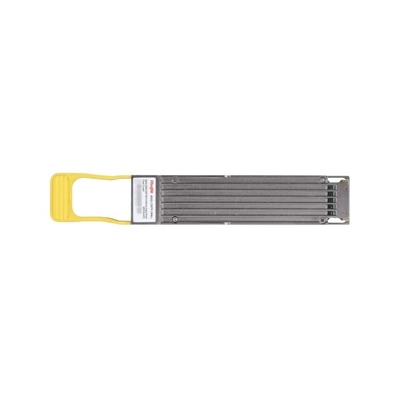

Ruijie 800G OSFP-DR8-L Optical Module 800Gbps Speed Low Power OSFP MSA Compliance

Large Image : Ruijie 800G OSFP-DR8-L Optical Module 800Gbps Speed Low Power OSFP MSA Compliance

Product Details:

Brand Name:	Ruijie
Model Number:	800G-OSFP-DR8-L

Contact Now

Ruijie 800G OSFP-DR8-L Optical Module 800Gbps Speed Low Power OSFP MSA Compliance

Description

Dimensions:	440mm X 44mm X 220mm	Power Supply:	AC 100-240V
Operating Humidity:	10% To 90% (non-condensing)	Power Consumption:	Max 45W
Number Of Ports:	48	Switching Capacity:	176Gbps
Weight:	3.5kg	Forwarding Rate:	130.95Mpps
Port Type:	10/100/1000Base-T	Security Features:	Port Security, MAC Authentication, IP Source Guard
Vlan Support:	IEEE 802.1Q	Model:	RG-S5750-H
Operating Temperature:	0°C To 45°C	Management Interface:	Console, Telnet, SSH, Web, SNMP
Highlight:	Low Power Optical Module , 800G OSFP-DR8-L Optical Module

Ruijie 800G OSFP-DR8-L Optical Module 800Gbps Speed Low Power OSFP MSA Compliance

The Ruijie 800G OSFP-DR8-L is a next-generation 800G optical transceiver designed for ultra-high-speed data centers, cloud networks, and AI/ML infrastructures. Leveraging OSFP (Octal Small Form Factor Pluggable) packaging and PAM4 modulation, this module delivers 800Gbps bandwidth with exceptional efficiency, making it ideal for spine-leaf architectures, HPC clusters, and 5G/6G backbones.

Key Features & Benefits

800Gbps Data Rate: Supports 8x100G PAM4 channels (DR8) for high-density, low-latency connectivity.
OSFP MSA Compliance: Future-proof design with superior thermal performance for dense deployments.
Single-Mode Fiber (SMF) Support: Enables 500m-2km reach (dependent on fiber type).
Low Power Consumption: Optimized for energy-efficient data centers, reducing TCO.
DDM/DOM Monitoring: Real-time diagnostics for temperature, voltage, and optical power.
Broad Compatibility: Works with Ruijie and industry-standard 800G switches/routers.

Technical Specifications

Parameter	Specification
Form Factor	OSFP
Data Rate	800Gbps (8x100G PAM4)
Wavelength	1310nm (DR8)
Fiber Type	Single-Mode Fiber (SMF)
Max Distance	Up to 500m (2km with optimization)
Power Consumption	<18W (typical)
Diagnostics	DDM (Digital Diagnostic Monitoring)
Compliance	IEEE 802.3, OSFP MSA

Applications

Data Center Interconnect (DCI): High-bandwidth spine-leaf networks.
AI/GPU Clusters: NVLink, InfiniBand, and RDMA over Converged Ethernet (RoCE).
Telecom Core: 5G/6G fronthaul and midhaul.

Why Choose Ruijie?

Ruijie's 800G OSFP-DR8-L combines cutting-edge performance, reliability, and scalability, ensuring seamless upgrades to 800G infrastructure. Backed by Ruijie's global support, this module is a cost-effective solution for enterprises and hyperscalers.
