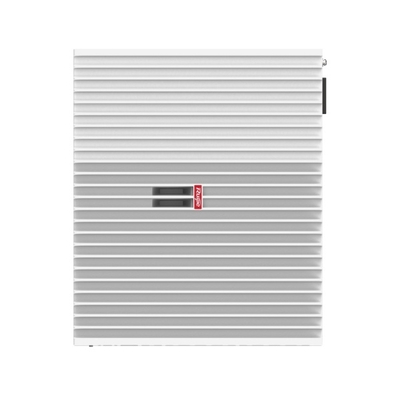

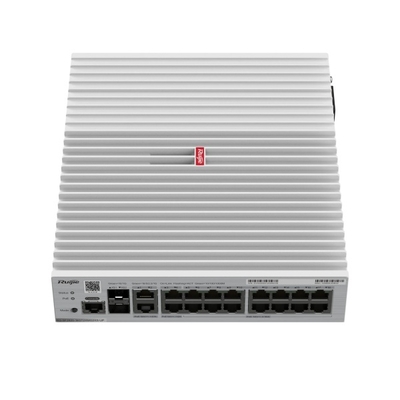

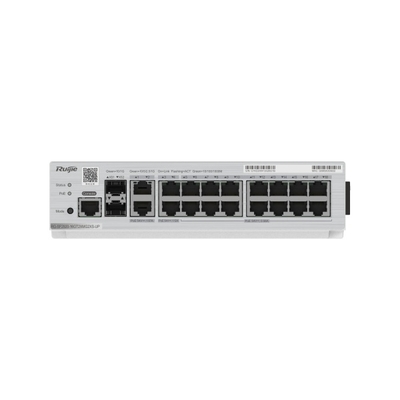

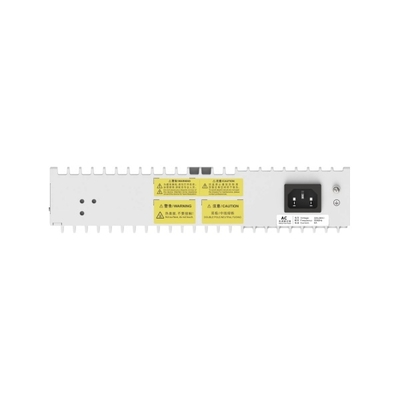

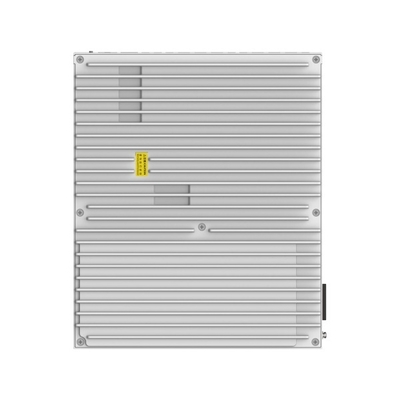

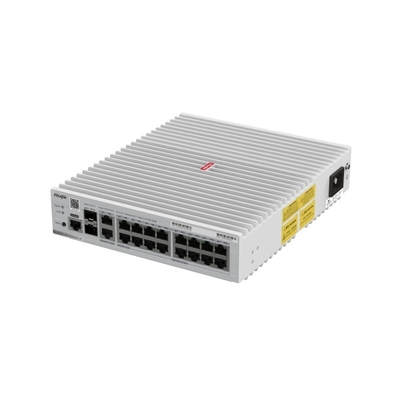

High-Performance 16-Port Ruijie Switch With 10G Uplink Advanced Layer 2 Management

Large Image : High-Performance 16-Port Ruijie Switch With 10G Uplink Advanced Layer 2 Management

Product Details:

Brand Name:	Ruijie
Model Number:	RG-SF2920-16GT2XMG2XS-UP

Contact Now

High-Performance 16-Port Ruijie Switch With 10G Uplink Advanced Layer 2 Management

Description

Dimensions:	440 X 44 X 350 Mm	Weight:	5.5kg
Power Supply:	AC 100-240V, 50/60Hz	Ports:	48 X 10/100/1000Base-T + 4 X 10G SFP+
Mac Address Table Size:	32K	Management Interface:	Console, Telnet, SSH, Web, SNMP
Poe Support:	Yes	Switching Capacity:	176Gbps
Stacking Support:	Yes	Vlan Support:	Yes
Forwarding Rate:	130.95Mpps	Model:	RG-S5750-H
Poe Budget:	740W	Layer:	Layer 2+
Highlight:	10G Uplink Ruijie Switch , 16-Port Ruijie Switch , Layer 2 Management Ruijie Switch

High-Performance 16-Port Ruijie Switch With 10G Uplink & Advanced Layer 2 Management

The Ruijie RG-SF2920-16GT2XMG2XS-UP is a feature-rich Gigabit Layer 2 managed switch designed for SMBs, enterprise networks, and campus environments. With 16x1G copper ports, 2x10G SFP+ uplinks, and advanced management capabilities, it delivers high-speed connectivity, scalability, and security for demanding networks.

Key Features & Benefits

High-Speed Networking - 16x Gigabit Ethernet ports + 2x10G SFP+ uplinks for seamless aggregation and backbone connectivity.
Advanced Layer 2 Management - Supports VLAN, QoS, ACL, STP/RSTP/MSTP, and ERPS ring protection (sub-50ms failover).
Enhanced Security - Port security, DHCP Snooping, IP Source Guard, and 802.1X authentication prevent unauthorized access.
Easy Cloud & Web Management - Web GUI, CLI, and SNMP for flexible control + optional Ruijie Cloud platform for centralized monitoring.
Energy-Efficient & Silent - Fanless design with IEEE 802.3az (EEE) for reduced power consumption.

Technical Specifications

Model	RG-SF2920-16GT2XMG2XS-UP
Ports	16x 10/100/1000BASE-T, 2x 1G SFP, 2x 10G SFP+
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Management	Web, CLI, SNMPv1/v2c/v3, RMON, LLDP
Security	ACL, Port Security, DHCP Snooping, IP Source Guard, 802.1X
QoS	802.1p/DSCP priority, 4 queues per port
Power	100-240V AC, <30W (non-PoE)
Dimensions	440 x 180 x 44 mm (Rack-mountable)

Ideal Use Cases

Enterprise Access Layer - Connects PCs, IP phones, and wireless APs with Gigabit speeds.
Campus & Surveillance Networks - 10G uplinks handle high-bandwidth traffic from IP cameras and servers.
SMB & Branch Offices - Easy-to-manage yet enterprise-grade switching at an affordable price.

This Ruijie switch balances performance, security, and cost-efficiency, making it a top choice for modern networks. For datasheets, firmware, or bulk pricing, contact Ruijie authorized partners today!
