24-Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RG-S5315-24MG6XS-UP-E

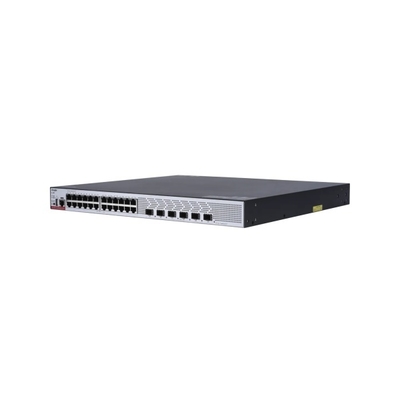

Large Image : 24-Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RG-S5315-24MG6XS-UP-E

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S5315-24MG6XS-UP-E

Contact Now

24-Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RG-S5315-24MG6XS-UP-E

Description

Power Consumption:	Max. 60W	Weight:	4.5kg
Dimensions:	440mm X 44mm X 310mm	Redundancy Protocols:	STP, RSTP, MSTP
Qos Support:	Yes	Management Interface:	Web, CLI, SNMP
Number Of Ports:	48	Forwarding Rate:	130.95Mpps
Model:	RG-S5750E	Security Features:	MAC Address Filtering, Port Security, 802.1X Authentication
Port Type:	10/100/1000Base-T	Vlan Support:	Yes
Switching Capacity:	176Gbps	Power Supply:	AC 100-240V
Highlight:	10G Uplink Ruijie Switch , Layer 3 Routing Ruijie Switch , 24 Port Ruijie Switch

24-Port Gigabit Ruijie Switch With 10G Uplink & Layer 3 Routing RG-S5315-24MG6XS-UP-E

The Ruijie RG-S5315-24MG6XS-UP-E is a high-performance managed Gigabit switch designed for enterprise networks, data centers, and high-bandwidth applications. Featuring 24x 10/100/1000Mbps RJ45 ports and 6x 1G/10G SFP+ uplinks, this Layer 3 switch delivers scalable connectivity, advanced QoS, and robust security for demanding environments.

Key Features & Benefits

High-Speed Networking - 24 Gigabit Ethernet ports + 6x 10G SFP+ slots for high-density access and ultra-fast uplinks.
Layer 3 Routing - Supports static routing, RIP, OSPF, and IPv4/IPv6 dual-stack for flexible network segmentation.
Enterprise-Grade Reliability - RERP ring protocol (30ms failover), LACP trunking, and optional dual power supplies for uninterrupted operation.
Advanced Security - 802.1X authentication, ACLs, DHCP snooping, and port isolation to prevent unauthorized access.
Smart Traffic Management - QoS prioritization (voice/video optimization) and storm control for stable performance.

Technical Specifications

Category	Specifications
Ports	24x 10/100/1000BASE-T, 6x 1G/10G SFP+ (Combo)
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer 3 Features	Static route, RIP, OSPF, IPv6
Redundancy	RERP, STP/RSTP/MSTP, LACP
Security	ACL, 802.1X, Port Security, DHCP Snooping
Management	Web, CLI, SNMPv3, SSH, RMON
Power Supply	AC 100-240V, 50/60Hz (Optional dual PSU)

Ideal Applications

Enterprise/Campus Networks - Reliable access/aggregation layer switching.

Data Centers - High-speed server connectivity with 10G uplinks.

IP Surveillance - Supports PoE+ (if PoE model) for IP cameras.

This Ruijie 24-port managed switch balances performance, scalability, and security, making it a cost-effective solution for SMBs and large enterprises. Backed by Ruijie's warranty and support, it ensures long-term reliability.
