Management Port: | 1 GE (Integated Out Of Band) | Dimensions: | 88.9 X 438.15 X 469.9 Mm |
---|---|---|---|
Lan Ports: | 4 X 10/100/1000 Mbps | Products Status: | Stock |
Data Link Protocol: | Ethernet, Fast Ethernet | Connectivity: | Wired |
Function: | Voip, QoS, VPN | Ethernet Port Adapters: | 1 EPA Slot |
Network Management Type: | Fully Managed | Transmission Distance: | Up To 80km (SMF) |
Transmission Rate: | 10/100/1000Mbps | Power Supply Type: | External: AC, PoE |
Flash Memory Installed: | 4 GB | Memory: | 4 GB (default) / 8 GB (maximum) |
Highlight: | H3C SR8808-X enterprise router,100G 40G port network router,industrial high-speed network router |

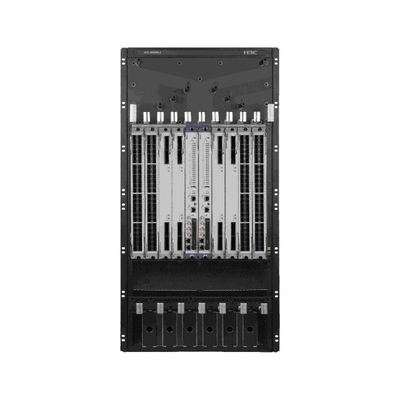

H3C SR8808-X Router High-Performance 100G/40G Ports SDN & MPLS VPN Support For Enterprise Networks
The H3C SR8808-X Router is a high-end, carrier-grade networking solution designed for enterprise core networks, data centers, and ISP backbones. With 24,000 Mpps forwarding capacity and support for 100G/40G high-speed interfaces, it delivers ultra-low latency and high throughput for bandwidth-intensive applications.
High-Performance Routing – Supports 24000 Mpps packet forwarding, ensuring smooth operation for large-scale networks.
Flexible Connectivity – Offers 100G/40G/10G ports, POS, ATM, and E1/T1 interfaces for versatile deployment.
SDN & Network Virtualization – OpenFlow v1.3 certified, enabling seamless SDN integration and IRF2.0 virtualization for simplified management.
MPLS VPN & Advanced Security – Supports L2/L3 VPN, IPSec, and MPLS for secure enterprise WAN connectivity.
Carrier-Grade Reliability – Features N+M power redundancy, sub-50ms failover (MPLS FRR/OSPF FRR), and 1588v2 clock synchronization for mission-critical networks.
Intelligent QoS & BRAS – Delivers 5-level H-QoS, traffic shaping, and PPPoE/IPoE for optimized service delivery.
Parameter | Specification |
---|---|
Forwarding Rate | 24,000 Mpps |
Interface Types | 100G/40G/10G, FE/GE, POS, ATM, E1/T1 |
Virtualization | IRF2.0, OpenFlow v1.3 |
VPN Support | MPLS VPN, L2/L3 VPN, IPSec, L2TP |
Redundancy | 6x Power Supply (N+M), FRR (<50ms) |
Operating Temp. | -40°C to 65°C |
Ideal for large enterprises, cloud providers, and telecom operators, the SR8808-X combines scalability, security, and SDN readiness in a single platform. Its modular design allows for easy upgrades, while Comware V7 OS ensures stability and advanced traffic management.
