H3C CR16018-F Router High-Performance 12.96Tbps CLOS Architecture Carrier-Grade Reliability For 5G & Cloud Networks

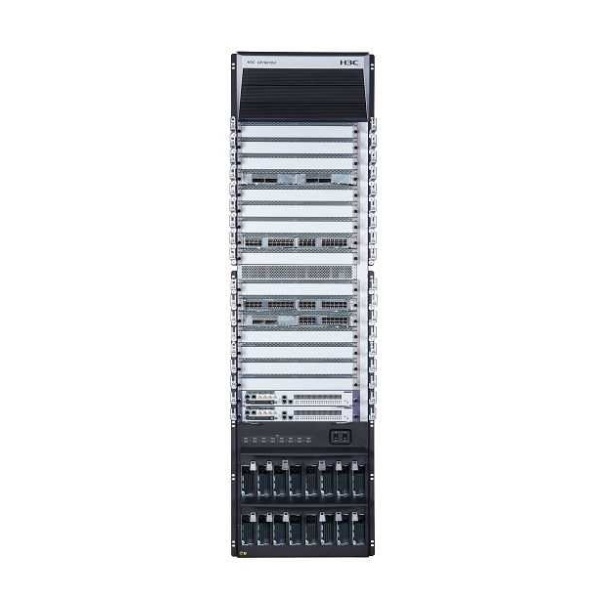

The H3C CR16018-F is a next-generation core router designed for carrier-grade networks, 5G backbones, and cloud data center interconnects. Featuring a 12.96Tbps CLOS multi-stage switching architecture, it delivers non-blocking, high-density 10G/40G/100G port scalability, making it ideal for high-traffic environments such as IP backbone networks and hyperscale cloud deployments.

Key Features & Benefits

1. Ultra-High Performance

   • 12.96Tbps switching capacity with 720G per slot, supporting line-rate forwarding for high-density 10G/100G interfaces.

   • Distributed Credit scheduling with 72 parallel schedulers (SCH) ensures optimal load balancing and minimal latency.

   • Dynamic cell-based switching reduces forwarding delay by 30-100x compared to traditional routers.

2. Carrier-Grade Reliability

   • 1+1 redundancy for main control boards, switching fabrics, power supplies, and fans.

   • 99.999% availability with NSR (Non-Stop Routing), ISSU (In-Service Software Upgrade), and sub-50ms MPLS FRR failover.

   • Multi-chassis clustering for seamless scalability up to tens of Tbps.

3. Advanced 5G & Cloud Networking

   • MPLS VPN (L2/L3) with Option1/2/3 cross-domain support, HoPE (Hierarchical PE), and multicast VPN.

   • SDN & VXLAN/EVPN-ready, enabling flexible cloud interconnect and network virtualization.

   • Deployed in China Mobile’s 5G backbone with 70% market share in key procurement segments.

4. Security & Energy Efficiency

   • Integrated firewall module, DDoS/ARP protection, and URPF anti-spoofing.

   • Green design with intelligent fan control, low-power chips, and high-efficiency power modules.

Technical Specifications (H3C CR16018-F)

Why Choose the H3C CR16018-F?

The CR16018-F is a proven solution in operator 5G networks, cloud backbones, and large-scale enterprise cores, combining cutting-edge hardware, unmatched reliability, and future-proof scalability. Its CLOS architecture, distributed scheduling, and carrier-grade redundancy make it a top choice for mission-critical deployments.

For pricing and detailed configurations, contact H3C authorized partners or visit the official website.
