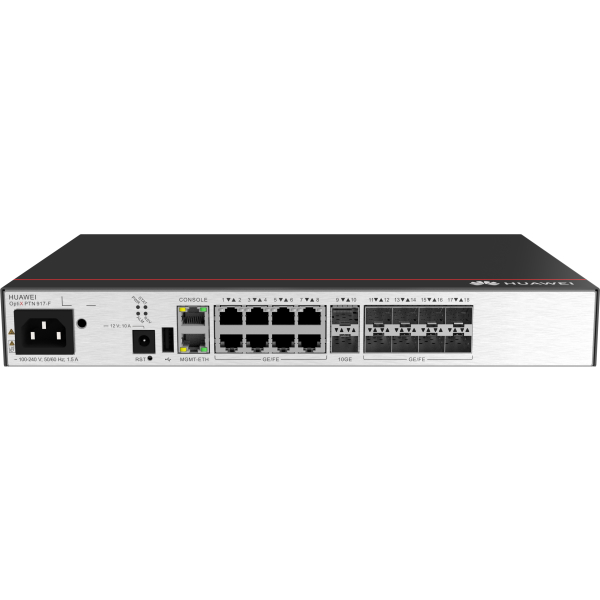

Huawei PTN 917-F Compact Router with PTN/IP RAN Dual Mode

Compact Huawei Router With PTN/IP RAN Dual Mode & 5G Sync For Reliable Backhaul
The Huawei OptiX PTN 917-F is a high-performance, 1U compact router designed for 5G mobile backhaul, enterprise private lines, and multi-service convergence. Combining PTN and IP RAN dual-stack support, it delivers carrier-grade reliability with MPLS-TP/SR-TP protocols, ultra-low latency, and precise 1588v2 synchronization for 5G networks.

Key Features

1. Dual-Mode Flexibility

   • Supports both PTN (MPLS-TP) and IP RAN architectures, enabling seamless integration with legacy SDH and modern IP networks.

2. 5G-Optimized Performance

   • Sub-50ms protection switching ensures zero service interruption.

   • IEEE 1588v2 (PTP) + SyncE for nanosecond-level clock synchronization, critical for 5G fronthaul/backhaul.

3. Space-Saving & High Density

   • 1U height design saves rack space while offering 8xGE, 4xE1, and optional 10GE/PON ports.

4. Enterprise-Grade Security

   • Hardware-based encryption and L3 VPN support for secure multi-tenant services.

5. Simplified O&M

   • Managed via U2000/iManager UMF with ZTP (Zero Touch Provisioning) for rapid deployment.

Technical Specifications (Key Parameters)

Why Choose Huawei PTN 917-F?

• Future-Proof: Ready for 5G/5.5G latency-sensitive applications.

• Multi-Service: Converges TDM (E1), Ethernet (GE/10GE), and PON on a single platform.

• Energy-Efficient: <50W power consumption, reducing OPEX.

Ideal For: Mobile operators, ISPs, and enterprises needing compact, reliable transport for 5G, IoT, or mission-critical private lines.
