| Frequency Band: | 2.4 GHz, 5 GHz | Power Consumption: | 13 W |
|---|---|---|---|
| Number Of Users: | Up To 256 | Wireless Frequency Band: | 2.4GHz And 5GHz |
| Security Protocols: | WPA/WPA2, WEP, 802.1X, MAC Address Filtering | Maximum Number Of Users: | 128 |
| Mimo Technology: | 2x2 MIMO | Management And Configuration: | Web-based, CLI, SNMP, Telnet |
| Supported Devices: | Up To 128 Wireless Devices | Weight: | 1.2kg |
| Maximum Power Consumption: | 12W | Ethernet Ports: | 2x GE |
| Security: | WPA/WPA2, 802.1X, MAC Address Filtering | Max Throughput: | 1.75 Gbps |
| Highlight: | Huawei AirEngine Wi-Fi 6 AP,industrial IP67 wireless access point,5.375Gbps Huawei wireless AP |
||

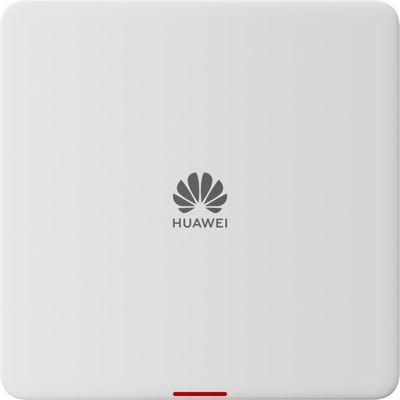

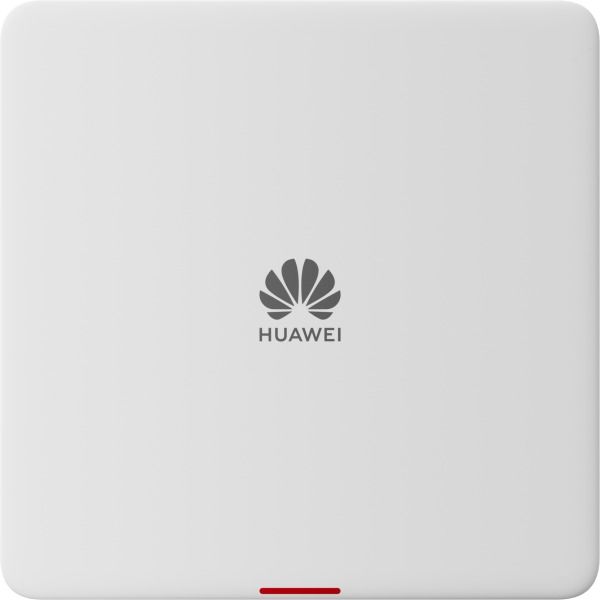

Huawei Wireless AP AirEngine 5773-25HW : Wi-Fi 6 , 5.375Gbps Speed & Industrial-Grade Durability
The Huawei AirEngine 5773-25HW is a high-performance Wi-Fi 6 (802.11ax) wireless access point designed for enterprise and industrial environments. Delivering dual-band speeds up to 5.375Gbps (574Mbps on 2.4GHz + 4.8Gbps on 5GHz), it ensures seamless connectivity for high-density deployments like offices, campuses, and smart factories.
✔ Wi-Fi 6 Performance – Supports 4×4 MIMO, 160MHz channel bandwidth, and OFDMA for efficient multi-user connectivity with reduced latency.
✔ Industrial-Grade Durability – IP67-rated waterproof/dustproof and wide-temperature operation (-40°C to 65°C), ideal for harsh environments.
✔ Huawei Smart Antenna Technology – Enhances coverage by 20% with dynamic beamforming for stable connections.
✔ AI-Driven Optimization – Self-tuning RF adjustments, interference avoidance, and load balancing for optimal performance.
✔ Enterprise Security – WPA3 encryption and built-in security chip for secure wireless access.
✔ Flexible Deployment – Supports PoE++ (802.3bt) or DC power, dual 10G uplinks (electrical/optical), and cloud management via CloudCampus.
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Max Speed | 5.375Gbps (2.4GHz: 574Mbps + 5GHz: 4.8Gbps) |
| MIMO Configuration | 4×4 (5GHz), 2×2 (2.4GHz) |
| Frequency Bands | Dual-band (2.4GHz & 5GHz) |
| Ethernet Ports | 2× 10G (PoE++ or fiber) |
| Operating Temp. | -40°C to 65°C |
| Ingress Protection | IP67 |
| Cloud Management | Huawei CloudCampus, eSight, iMaster NCE |
Enterprise offices – High-speed, low-latency connectivity for large teams.
Industrial IoT (IIoT) – Reliable Wi-Fi in factories, warehouses, and outdoor areas.
Education & healthcare – Stable performance for video conferencing and IoT devices.
With cutting-edge Wi-Fi 6 technology, rugged design, and AI-powered optimization, the Huawei AirEngine 5773-25HW is a future-proof solution for demanding wireless networks.
