Warranty: | 1 Year | Frequency Bands: | 2.4GHz And 5GHz |
---|---|---|---|
Maximum Power Consumption: | 12 W | Operating Temperature: | 0°C To 40°C |
Power Supply: | AC: 100V To 240V, 50/60 Hz | Security: | WPA/WPA2, 802.1X, MAC Address Filtering |
Maximum Transmit Power: | 2.4GHz: 23dBm, 5GHz: 26dBm | Wireless Standards: | 802.11a/b/g/n/ac |
Poe Power Supply: | 802.3af/at, 48V DC | Ethernet Ports: | 2x GE |
Wireless Technology: | 802.11a/b/g/n/ac | Operating Humidity: | 5% To 95% (non-condensing) |
Operating System: | Huawei Versatile Routing Platform (VRP) | Model: | AP8050DN |
Highlight: | Huawei AirEngine Wi-Fi 6 AP,smart antenna wireless AP,Huawei 5762C-17W access point |

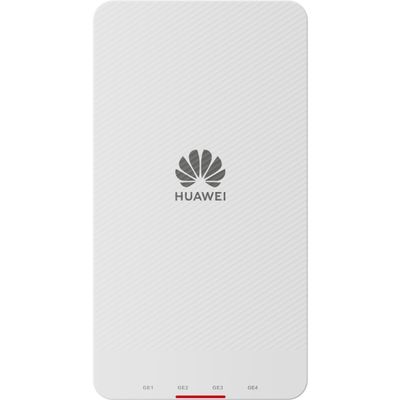

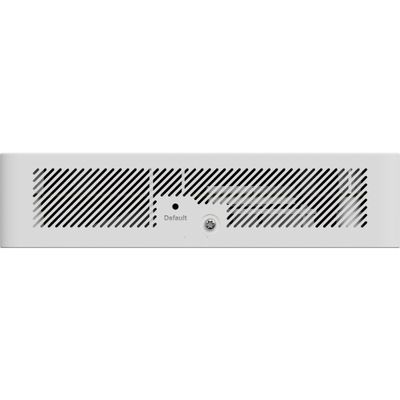

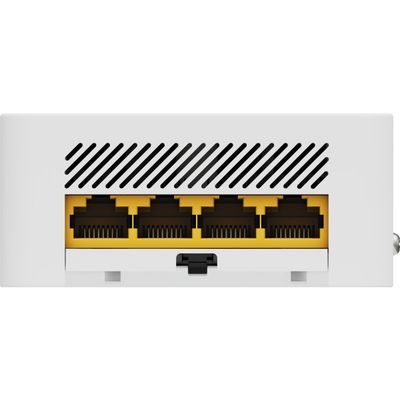

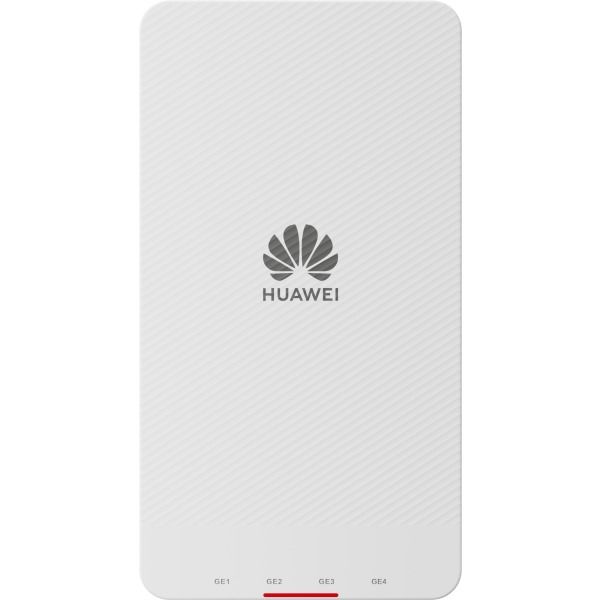

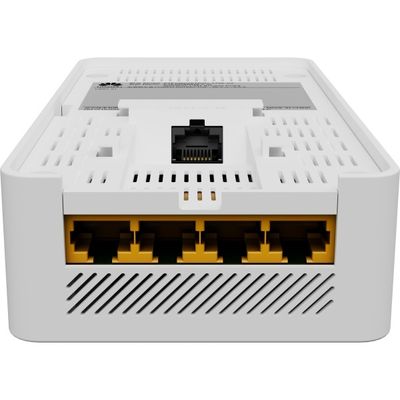

Huawei Wireless AP AirEngine 5762C-17W : Wi-Fi 6 , Smart Antenna & IoT For High-Density Networks
The Huawei AirEngine 5762C-17W is a high-performance Wi-Fi 6 (802.11ax) access point designed for enterprise and industrial environments, delivering ultra-fast speeds, reliable coverage, and IoT-ready connectivity. With 3.55Gbps combined throughput, smart antenna technology, and industrial-grade durability (IP67), this AP ensures seamless wireless performance in high-density scenarios like offices, campuses, warehouses, and smart factories.
✔ Wi-Fi 6 Technology – Supports 4×4 MIMO, 160MHz bandwidth, and OFDMA for low-latency, high-efficiency connectivity.
✔ Smart Antenna System – Huawei’s self-developed beamforming enhances signal coverage by 20%, reducing dead zones.
✔ IoT Expansion – Built-in Bluetooth 5.1, BLE, and Zigbee for smart asset tracking and sensor networks.
✔ Industrial-Grade Design – IP67-rated for dust/water resistance, ideal for harsh environments.
✔ AI-Driven Optimization – Works with iMaster NCE-Campus for auto RF tuning, load balancing, and predictive maintenance.
✔ Energy Efficient – Dynamic power adjustment reduces power consumption by 15%.
Parameter | Specification |
---|---|
Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
Max Speed | 3.55Gbps (2.976Gbps 5GHz + 574Mbps 2.4GHz) |
MIMO | 4×4 (5GHz), 2×2 (2.4GHz) |
Frequency Bands | Dual-band (2.4GHz & 5GHz) |
Ethernet Ports | 1× Gigabit + 1× 2.5G (Multi-Gigabit) |
PoE Support | 802.3af/at/bt (PoE++) |
IoT Support | Bluetooth 5.1, BLE, Zigbee |
Durability | IP67 (Dust/Waterproof) |
Management | Huawei iMaster NCE-Campus (Cloud/AI) |
✅ Enterprise Offices – High-speed, low-latency connectivity for video conferencing & cloud apps.
✅ Education & Healthcare – Stable performance for e-learning & telemedicine.
✅ Smart Warehouses – IoT integration for asset tracking and automation.
✅ Outdoor/Industrial Sites – IP67 protection ensures reliability in tough conditions.
Huawei’s AI-driven wireless solutions provide superior coverage, security (WPA3), and energy efficiency compared to traditional APs. The 5762C-17W is a future-proof investment for businesses needing scalable, high-performance Wi-Fi 6 and IoT connectivity.
Upgrade to Huawei’s next-gen wireless AP—optimized for speed, intelligence, and reliability!
