Antenna Type: | Internal Antennas | Security Protocols: | WPA/WPA2, 802.1X, WEP, And More |
---|---|---|---|
Antenna Configuration: | 2x2 MIMO | Operating Humidity: | 5% To 95% |
Frequency Band: | Dual-band (2.4GHz/5GHz) | Humidity: | 5% To 95% (non-condensing) |
Poe Support: | 802.3af/at | Wireless Technology: | 802.11a/b/g/n/ac |
Network Standard: | IEEE 802.11a/b/g/n/ac | Maximum Transmission Rate: | 1.733 Gbit/s |
Product Type: | Wireless Access Point | Management Protocols: | SNMP, Telnet, SSH, FTP, HTTP, HTTPS |
Operating Temperature: | 0°C To 40°C | Storage Temperature: | -40°C To +70°C |
Highlight: | Huawei AirEngine Wi-Fi 6 AP,10Gbps enterprise wireless AP,Huawei 6776I-X6ETH-K access point |

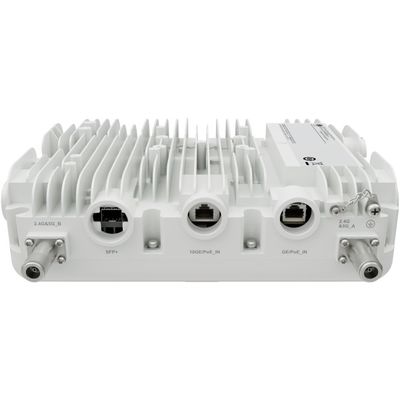

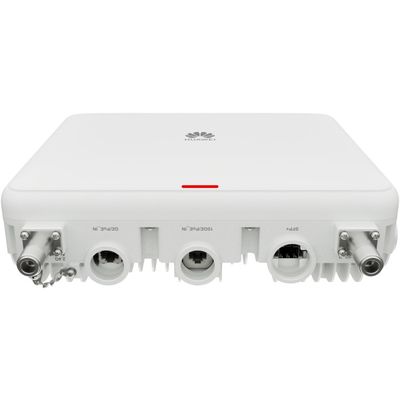

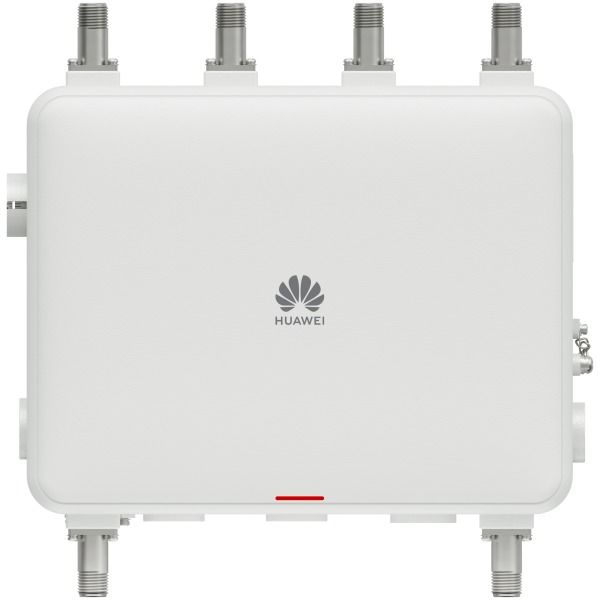

Huawei Wireless AP AirEngine 6776I-X6ETH-K - Wi-Fi 6 , 10Gbps Speed & AI Optimization For Enterprise
The Huawei AirEngine 6776I-X6ETH-K is a high-performance Wi-Fi 6 (802.11ax) wireless access point designed for enterprise-grade connectivity. With a 10.75Gbps combined throughput, 10GE uplink, and AI-driven optimization, it delivers ultra-fast, stable, and intelligent wireless networks for high-density environments like offices, campuses, and smart factories.
Wi-Fi 6 Performance
10.75Gbps Total Speed: 6 streams in 5GHz (8×8 MU-MIMO) + 2 streams in 2.4GHz, supporting 160MHz bandwidth for lag-free 4K/VR streaming.
OFDMA & MU-MIMO: Efficiently serves multiple devices simultaneously, reducing latency by 30% in crowded areas.
10G Ethernet & IoT Ready
10GE Uplink Port: Ensures seamless backhaul for bandwidth-intensive applications.
Tri-Radio Design: Dedicated IoT radio (Bluetooth 5.0/Zigbee) for smart building integrations.
AI-Powered Optimization
CampusInsight AI Engine: Automatically diagnoses network issues and optimizes coverage.
Smart Antenna: Beamforming technology extends range and mitigates interference.
Enterprise-Grade Security & Reliability
WPA3 Encryption: Protects against advanced cyber threats.
IP67 Rating (varies by model): Dust/water-resistant for harsh environments.
Parameter | Specification |
---|---|
Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
Max Speed | 10.75Gbps (5GHz: 8.6Gbps + 2.4GHz: 2.15Gbps) |
Ethernet Port | 1× 10GE uplink |
IoT Support | Bluetooth 5.0, Zigbee (via auxiliary radio) |
Antenna | Smart directional array |
Management | Huawei CloudCampus, SNMP, Web UI |
Ideal for enterprises, universities, and smart venues, the AirEngine 6776I-X6ETH-K combines future-proof Wi-Fi 6 speeds, AI automation, and scalable IoT connectivity in a single AP. Its 10G Ethernet eliminates bottlenecks, while Huawei’s CampusInsight ensures minimal downtime.
