Wireless Technology: | 802.11a/b/g/n/ac | Wireless Frequency Bands: | 2.4GHz And 5GHz |
---|---|---|---|
Maximum Concurrent Users: | 256 | Ethernet Ports: | 2x GE |
Model: | AP4051DN | Security Protocols: | WEP, WPA, WPA2, WPA3 |
Connectivity: | Wireless | Security Features: | WPA/WPA2, MAC Address Filtering, 802.1X Authentication |
Max Throughput: | 1.75 Gbps | Dimensions: | 220mm X 220mm X 40mm |
Supported Protocols: | TCP/IP, DHCP, DNS, FTP, HTTP, HTTPS | Product Type: | Wireless Access Point |
Management Interface: | Web-based, CLI, SNMP | Management Protocol: | SNMP, Telnet, SSH |
Highlight: | Huawei AirEngine tri-band Wi-Fi 6 AP,enterprise tri-band wireless access point,Huawei 6776-58TI-K Wi-Fi 6 AP |

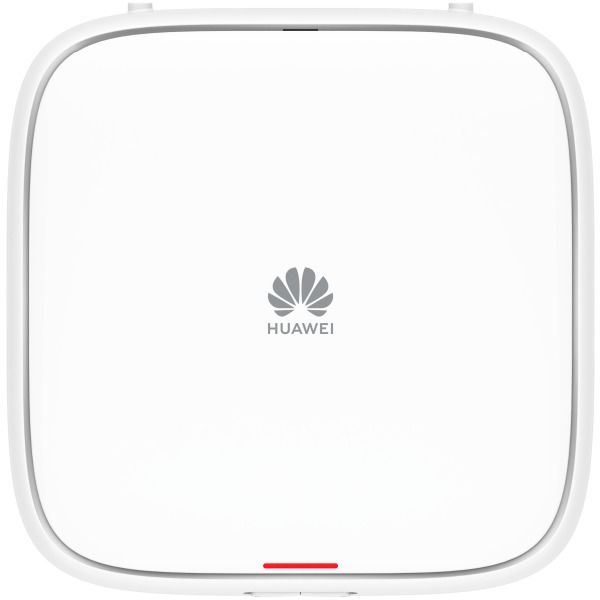

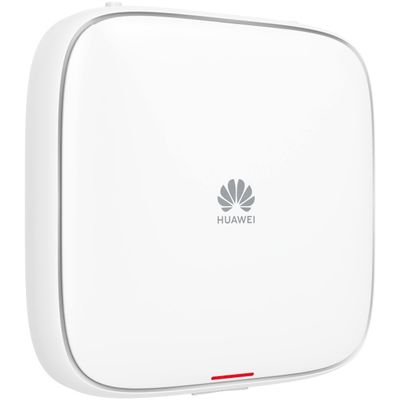

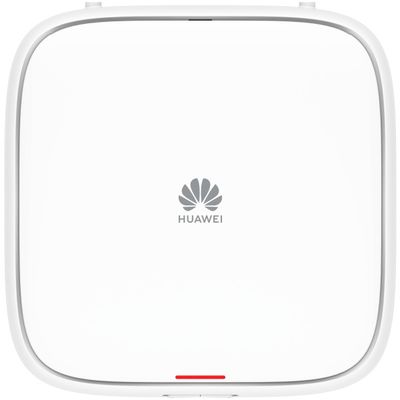

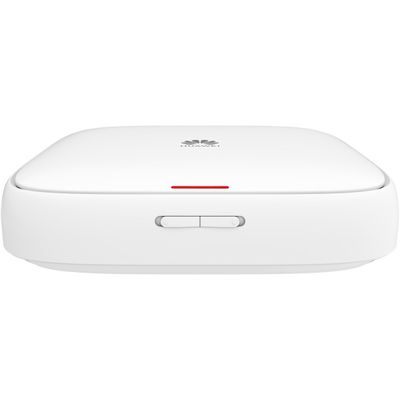

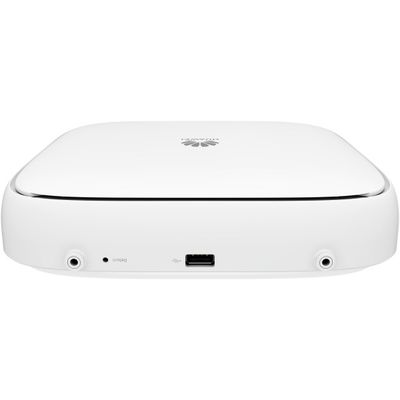

Huawei Wireless AP AirEngine 6776-58TI-K : Tri-Band Wi-Fi 6 , AI-Optimized RF & 10G Uplink For Enterprise
The Huawei AirEngine 6776-58TI-K is an enterprise-grade Wi-Fi 6 wireless AP designed for high-density, high-performance environments. Featuring tri-band 12-stream technology (2.4GHz + 5GHz + 6GHz), it delivers a combined 7.95Gbps throughput, ensuring seamless connectivity for bandwidth-intensive applications like 4K video, VR, and cloud collaboration.
Tri-Band Wi-Fi 6 with 160MHz Channel Width
Utilizes 2.4GHz (4×4) + 5GHz (4×4) + 6GHz (4×4) radios to reduce interference and maximize capacity.
Supports 1024-QAM and OFDMA for efficient multi-device handling.
AI-Optimized Radio Frequency (RF)
Smart antenna technology dynamically adjusts signal beams to enhance coverage by 20%.
AI-powered interference avoidance mitigates noise from Bluetooth, microwaves, and neighboring Wi-Fi networks.
Enterprise-Grade Uplink & Security
Dual 10G Ethernet ports (PoE++ supported) for high-speed backhaul and power delivery.
WPA3 encryption and hardware-based security chips to protect against cyber threats.
Cloud-Managed & IoT-Ready
Compatible with Huawei CloudCampus for zero-touch provisioning and AI-driven network optimization.
Optional IoT expansion slot (BLE/Zigbee) for smart building deployments.
Category | Specification |
---|---|
Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
Frequency Bands | 2.4GHz + 5GHz + 6GHz (Tri-Band) |
Max Speed | 7.95Gbps (2.4Gbps + 2.4Gbps + 3.15Gbps) |
Antenna | 12-stream smart antenna array |
Ethernet Ports | 2 × 10G (PoE++ supported) |
Max Clients | 256 per AP |
Security | WPA3, MAC/SSID filtering, AES encryption |
Management | Huawei CloudCampus, SNMP, Web UI |
Large venues (stadiums, conference centers) requiring ultra-low latency.
Smart offices with dense device deployments (laptops, phones, IoT sensors).
Education/Healthcare supporting AR/VR applications and real-time data transmission.
With its future-proof Wi-Fi 6E readiness (6GHz support where available) and self-tuning RF, the Huawei 6776-58TI-K redefines enterprise wireless agility. Explore specs, pricing, or demos on Huawei’s official site today.
