Security: | WPA/WPA2, 802.1X, MAC Address Filtering | Max Throughput: | 1.75 Gbps |
---|---|---|---|
Maximum Data Rate: | 1.75Gbps | Wireless Frequency Band: | 2.4GHz And 5GHz |
Maximum Concurrent Users: | 256 | Security Protocol: | WEP, WPA, WPA2 |
Wireless Technology: | 802.11a/b/g/n/ac | Humidity: | 5% To 95% (non-condensing) |
Supported Protocols: | TCP/IP, DHCP, DNS, FTP, HTTP, HTTPS | Management Protocol: | SNMP, Telnet, SSH |
Antenna Configuration: | 4x4 MIMO | Mounting Options: | Ceiling, Wall, And Desktop |
Power Consumption: | 12 W | Frequency Band: | 2.4 GHz / 5 GHz |
Highlight: | Huawei AirEngine Wi-Fi 6 AP,tri-band enterprise wireless AP,7.7Gbps Huawei wireless access point |

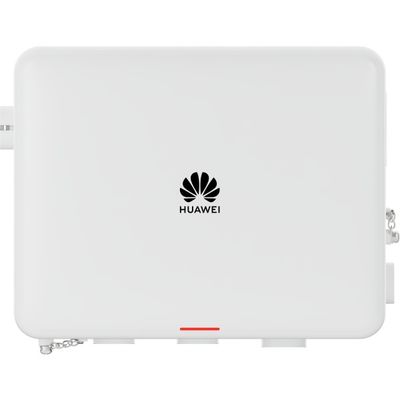

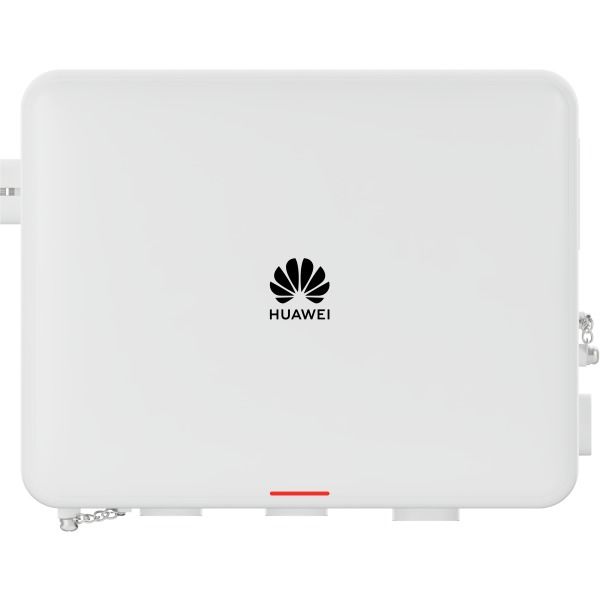

Huawei Wireless AP AirEngine 6776I-X6TH : Wi-Fi 6 , Tri-Band 7.7Gbps & IoT Fusion For Enterprise
The Huawei Wireless AP AirEngine 6776I-X6TH is a cutting-edge Wi-Fi 6 (802.11ax) access point designed for high-density enterprise environments. Combining tri-band 7.7Gbps speeds, 8×8 MU-MIMO, and IoT convergence, it delivers ultra-reliable connectivity for offices, campuses, and industrial sites.
Blazing-Fast Wi-Fi 6 Performance
Tri-band concurrent operation: 2.4GHz (1.15Gbps) + 5GHz-low (2.4Gbps) + 5GHz-high (4.3Gbps).
8×8 MU-MIMO & 160MHz bandwidth: Supports 256+ simultaneous connections with minimal latency (<10ms).
Huawei Dynamic Narrowband Technology: Enhances anti-interference capability in congested environments.
AI-Driven Optimization
Smart antenna & beamforming: Auto-adjusts signal coverage for 30% wider range.
AI Radio Scheduling: Dynamically allocates channels and power to maximize throughput.
All-in-One IoT Ready
Built-in Bluetooth 5.1, RFID, and Zigbee for seamless IoT device integration.
Modular expansion slot for additional sensors or RFID readers.
Enterprise-Grade Reliability
IP67-rated rugged design: Resists dust, water, and extreme temperatures (-40°C to 65°C).
WPA3 encryption + hardware security chip: Protects against cyber threats.
Cloud-Managed & Energy-Efficient
Compatible with Huawei iMaster NCE for centralized cloud management.
AirTurbo power-saving tech: Reduces energy consumption by 15%.
Feature | Specification |
---|---|
Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
Max Speed | 7.7Gbps (Tri-band aggregate) |
Antenna | 8×8 MU-MIMO, Smart Beamforming |
IoT Support | Bluetooth 5.1, RFID, Zigbee |
Concurrent Users | 256+ |
Latency | <10ms |
Durability | IP67, -40°C to 65°C operating range |
Management | Huawei iMaster NCE, Plug-and-Play |
Ideal for enterprises, stadiums, and smart factories, the 6776I-X6TH outperforms competitors with its tri-band flexibility, IoT fusion, and military-grade durability. Its AI-powered optimization ensures consistent performance even in high-density deployments.
