Operating Temperature: | 0°C To 40°C | Frequency Band: | 2.4 GHz, 5 GHz |
---|---|---|---|
Operating System: | Huawei Versatile Routing Platform (VRP) | Network Standard: | IEEE 802.11a/b/g/n/ac |
Maximum Data Rate: | 1.75 Gbit/s | Number Of Users: | Up To 256 |
Maximum Concurrent Users: | 256 | Max Throughput: | 1.75 Gbps |
Power Supply: | AC 100 V To 240 V, 50/60 Hz | Security: | WPA/WPA2, 802.1X, MAC Address Filtering |
Mimo Technology: | 4x4 MIMO | Antenna Type: | Internal MIMO |
Wireless Frequency Bands: | 2.4GHz And 5GHz | Connectivity: | Wireless |
Highlight: | Huawei AirEngine Wi-Fi 6 Pro AP,Huawei 6776-57T wireless access point,Wi-Fi 6 AP 5.775Gbps 256 users |

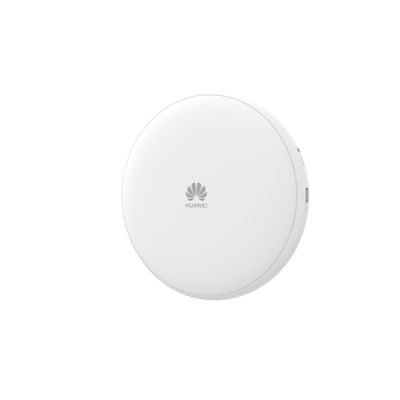

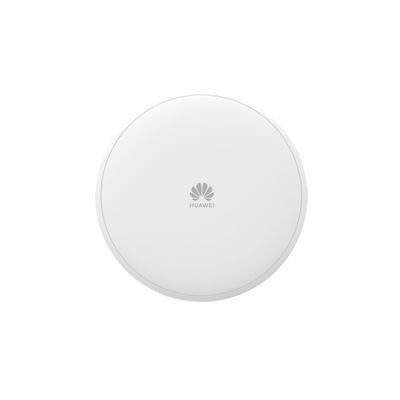

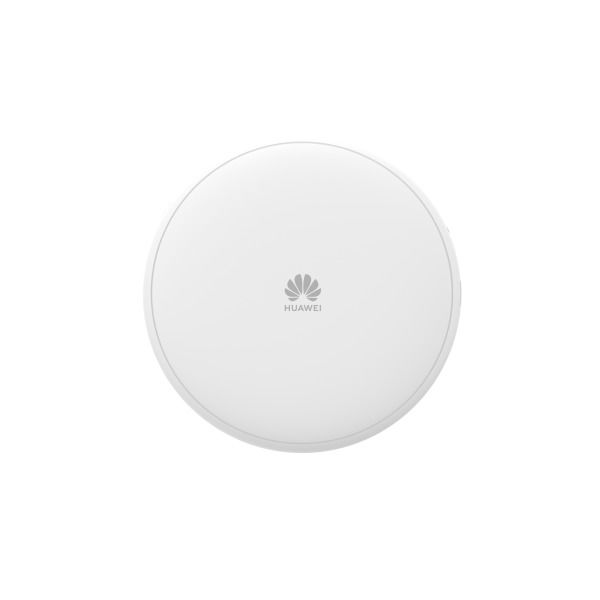

Huawei Wireless AP AirEngine 6776-57T : Wi-Fi 6 Pro With 5.775Gbps Speed & 256-User Capacity For Enterprise
The Huawei AirEngine 6776-57T is a cutting-edge Wi-Fi 6 Pro (802.11ax) wireless access point (AP) designed for enterprise-grade performance, delivering ultra-fast speeds, high-density connectivity, and AI-driven optimization. With a tri-radio design and 4K QAM modulation, it achieves a combined throughput of 5.775Gbps, making it ideal for bandwidth-intensive applications like 4K video streaming, VR/AR, and cloud collaboration.
Blazing-Fast Wi-Fi 6 Pro: Supports 160MHz channel bandwidth and 4K QAM, enabling single-terminal speeds up to 1.15Gbps—perfect for low-latency, high-throughput environments.
High-Density Connectivity: 16 spatial streams and 256 concurrent user capacity ensure seamless performance in crowded areas (e.g., campuses, stadiums, offices).
AI-Powered Optimization: SmartRadio dynamically reduces interference, while AirSlice technology guarantees QoS for critical apps (e.g., VoIP, video conferencing).
IoT & Multi-Service Support: Optional Bluetooth 5.1 and RFID modules enable converged Wi-Fi + IoT deployments.
Enterprise-Grade Security: WPA3 encryption and a dedicated hardware security chip protect against cyber threats.
Cloud Management: Integrates with Huawei CloudCampus for centralized, scalable AP management.
Parameter | Specification |
---|---|
Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
Frequency Bands | 2.4GHz + 5GHz (dual 5GHz radios) |
Max Speed | 5.775Gbps (aggregated) |
Spatial Streams | 16 (4x2.4GHz + 12x5GHz) |
Max Users | 256 per AP |
QoS Technology | AirSlice (network slicing for low latency) |
Security | WPA3, OFDMA, Target Wake Time (TWT) |
Management | Huawei CloudCampus, SNMP, Web UI |
Durability | IP67, -40°C to 65°C operating range |
Smart Enterprises: Supports high-density office networks with zero lag.
Education & Stadiums: Handles thousands of concurrent users during exams or live events.
Industrial IoT: Rugged design for factories and warehouses with IoT device integration.
Upgrade to the Huawei AirEngine 6776-57T for future-proof, scalable, and intelligent Wi-Fi 6 Pro connectivity.
