Connectivity: | Wireless | Security Protocol: | WEP, WPA, WPA2 |
---|---|---|---|
Supported Protocols: | TCP/IP, DHCP, DNS, FTP, HTTP, HTTPS | Power Supply: | AC: 100V-240V, 50Hz-60Hz |
Network Interface: | 1 X GE RJ45 | Management Protocol: | SNMP, Telnet, SSH |
Number Of Antennas: | 3 | Wireless Frequency Bands: | 2.4GHz And 5GHz |
Maximum Number Of Users: | 256 | Supported Devices: | Laptops, Smartphones, Tablets, Etc. |
Antenna Gain: | 2.4GHz: 3dBi, 5GHz: 4dBi | Maximum Concurrent Users: | 256 |
Wireless Technology: | 802.11a/b/g/n/ac | Operating System: | Huawei Versatile Routing Platform (VRP) |
Highlight: | Huawei AirEngine Wi-Fi 6 AP,triple-band wireless access point,Huawei 8760-X1-PRO access point |

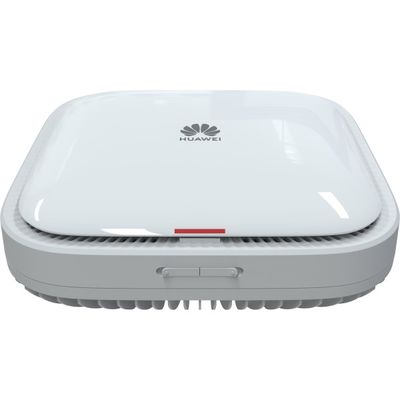

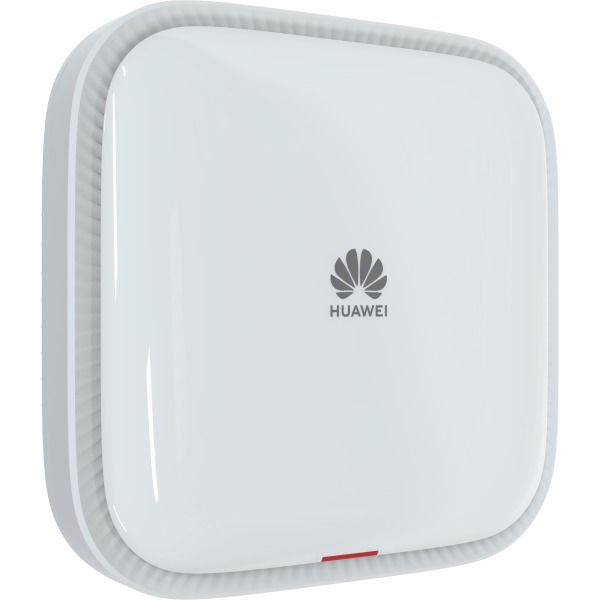

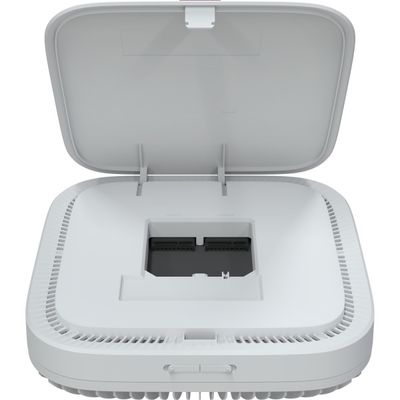

Huawei Wireless AP AirEngine 8760-X1-PRO : Wi-Fi 6 Triple-Band , 10.75Gbps Speed & AI-Optimized For High-Density Networks
The Huawei AirEngine 8760-X1-PRO is a cutting-edge Wi-Fi 6 (802.11ax) wireless access point designed for high-performance, high-density enterprise environments. Featuring a triple-band (2.4GHz + dual 5GHz) 12-stream architecture, it delivers blazing-fast speeds up to 10.75Gbps, making it ideal for bandwidth-intensive applications like 8K video streaming, VR/AR, and large-scale IoT deployments.
✔ Ultra-Fast Wi-Fi 6 Performance – Supports 160MHz channel bandwidth and 16K QAM modulation, boosting single-device speeds by 20% over standard Wi-Fi 6.
✔ AI-Driven Optimization – Huawei’s intelligent antenna and Radio Calibration dynamically adjust signal strength and reduce interference for seamless connectivity.
✔ High-Density Connectivity – Handles up to 1024 concurrent users with MU-MIMO & OFDMA, perfect for stadiums, conference halls, and smart campuses.
✔ Multi-Protocol IoT Support – Built-in Bluetooth 5.1, RFID, and Zigbee for seamless integration with smart devices and asset tracking.
✔ Industrial-Grade Durability – IP67-rated for dust/water resistance and operates in extreme temperatures (-40°C to 65°C).
✔ Cloud-Managed & Energy Efficient – Compatible with Huawei iMaster NCE-Campus for AI-powered network management, reducing OPEX by 30%.
Parameter | Specification |
---|---|
Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
Frequency Bands | 2.4GHz + 5GHz (dual-band) + 5GHz (tri-band) |
Max Speed | 10.75Gbps |
Antennas | 12-stream smart antenna array |
Concurrent Users | 1024+ |
IoT Support | Bluetooth 5.1, RFID, Zigbee |
PoE Support | Dual IEEE 802.3bt (60W) |
Operating Temp. | -40°C to 65°C |
Management | Huawei iMaster NCE-Campus (cloud/AI) |
Large Venues: Airports, stadiums, and convention centers requiring ultra-reliable Wi-Fi.
Smart Enterprises: High-speed office networks with IoT integration.
Industrial Sites: Rugged environments like factories and warehouses.
With enterprise-grade reliability, AI-powered optimization, and future-proof Wi-Fi 6 performance, the Huawei AirEngine 8760-X1-PRO sets a new standard for wireless networking. Upgrade your network today!
