3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2

3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2
3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2 3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2

Large Image :  3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2

Product Details:
Brand Name: Cisco
Model Number: N9K-C93180YC-FX2
Contact Now

3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2

Description
Vpn Support: IPsec, SSL, And DMVPN Stacking Support: Yes, Up To 8 Switches In A Stack
Product Form Factor: Rack-mountable Software: Network Essentials
Switch: WS-C2960+24TC-L WS-C2960+24LC-L High Availability: StackWise, VSS, ISSU
Forwarding Rate: Up To 357.14 Mpps Cisco: WS-C2960S-24TS-L WS-C2960S-48TS-L
Subtype: Gigabit Ethernet Ports Router: WS-C2960X-24TD-L WS-C2960X-48TD-L
Port Speed: 10/100/1000/10000 Mbps Weight: 12.79 Lbs
Downlinks: 24 Ports Full PoE+ Dimensions: 1.73 X 17.5 X 17.5 In.

3.6 Tbps Bandwidth , 48-Port Flexibility , VXLAN EVPN Support - Cisco Switch N9K-C93180YC-FX2

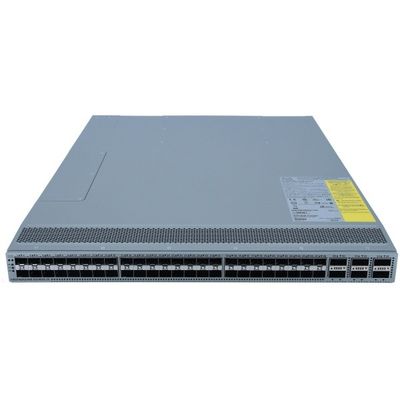

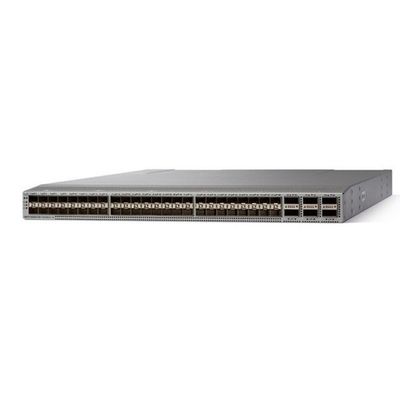

The Cisco Switch N9K-C93180YC-FX2 is a powerhouse designed to revolutionize your network infrastructure. With an impressive 3.6 Tbps bandwidth and a forwarding rate of 850 Mpps, it ensures ultra-fast data transmission, minimizing latency to less than 1 microsecond, making it ideal for real-time applications like financial trading and video conferencing.



This switch offers unparalleled port flexibility. It comes with 48 versatile downlink ports that can support 1, 10, or 25 Gbps Ethernet, or function as 16 or 32 Gbps Fibre Channel ports, enabling seamless connections to servers, storage devices, and more. The 6 uplink ports can be configured as 40/100 Gbps Ethernet or FCoE ports, providing extensive expansion capabilities.



Built on Cisco Cloud Scale technology, it supports VXLAN EVPN fabric and Layer 3 BGP architectures, allowing for the creation of scalable, non-blocking IPv6 networks. It can operate in either Cisco NX-OS software mode or Cisco ACI mode, catering to diverse network management needs.



The N9K-C93180YC-FX2 is also a leader in intelligent operations and management. Its built-in Telemetry technology offers real-time network monitoring, while support for automation scripts streamlines deployment and maintenance. Security is robust, with features like MACsec, ACLs, and RBAC safeguarding your network. Plus, its redundant power supplies and fans ensure high availability, and energy-efficient design cuts down on operational costs.



Parameters Table:



Feature Specification
Bandwidth 3.6 Tbps
Forwarding Rate 850 Mpps
Downlink Ports 48 ports (1/10/25 Gbps Ethernet or 16/32 Gbps Fibre Channel)
Uplink Ports 6 ports (40/100 Gbps Ethernet or FCoE)
Latency < 1 microsecond
Supported Modes Cisco NX-OS software mode, Cisco ACI mode
Security Features MACsec, ACLs, RBAC, DPI, IPS



In summary, the Cisco Switch N9K-C93180YC-FX2 combines high performance, flexibility, security, and intelligent management, making it a top choice for modern data centers and enterprise networks.
