Product Details:
Brand Name: Cisco
Model Number: AIR-CAP2702I-E-K9

High-Performance 802.11ac Wave 1 Cisco Wireless AP 1.6Gbps, 3x3 MIMO , Enterprise Security

Description
Power Consumption: 25.5W Frequency Band: 2.4 GHz And 5 GHz
Humidity Range: 10-90% (non-condensing) Mimo Technology: 4x4:4 MU-MIMO
Beamforming Technology: Yes Coverage Range: Up To 2,000 Square Feet
Max Data Rate: 5.2 Gbps Product Weight: 0.2 Lbs
Number Of Antennas: 4 Internal Omnidirectional Antennas Product Type: Networking Hardware
Connectivity Technology: Wired Product Ports: 1-4 Ports
Compatibility: Cisco Routers And Switches Cisco: WS-C2960XR-24TD-I WS-C2960XR-48TD-I

High-Performance 802.11ac Wave 1 Cisco Wireless AP 1.6Gbps, 3x3 MIMO , Enterprise Security

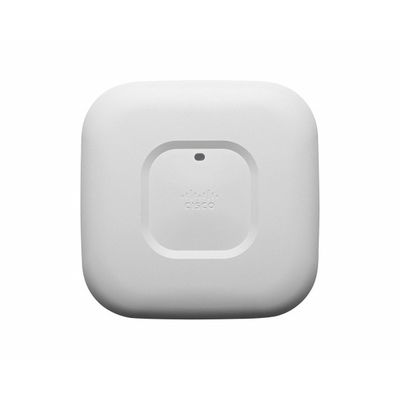

The Cisco AIR-CAP2702I-E-K9 is an enterprise-grade 802.11ac Wave 1 wireless access point (AP) designed to deliver high-speed connectivity, reliable coverage, and advanced security for demanding business environments. With dual-band support (2.4GHz and 5GHz), a 1.6Gbps aggregate throughput, and 3x3 MIMO technology, this Cisco Wireless AP ensures seamless performance for high-density deployments in offices, schools, hospitals, and industrial sites.

Key Features & Benefits

  • Blazing-Fast Speeds: Combines 802.11ac Wave 1 (1.3Gbps on 5GHz) and 802.11n (300Mbps on 2.4GHz) for a total throughput of 1.6Gbps, ideal for HD video, VoIP, and data-intensive applications.

  • 3x3 MIMO Antennas: Three spatial streams enhance signal range, stability, and client capacity, supporting more concurrent users without degradation.

  • Enterprise Security: Features WPA2-Enterprise, AES encryption, and Cisco CleanAir technology to automatically detect and mitigate RF interference (e.g., Bluetooth, microwaves).

  • Flexible Deployment: Operates in Lightweight (controller-based) or Autonomous mode, compatible with Cisco Wireless Controllers (WLC) and Cisco DNA Center for centralized management.

  • Industrial Durability: Rated for -20°C to 55°C operation with dust/water resistance, making it suitable for warehouses and harsh environments.

  • Power over Ethernet (PoE+): Supports 802.3at PoE+ for simplified installation and reduced cabling costs.

Technical Specifications

Parameter Details
Model AIR-CAP2702I-E-K9
Wi-Fi Standards 802.11a/b/g/n/ac (Wave 1)
Max Speed 1.6Gbps (1.3Gbps 5GHz + 300Mbps 2.4GHz)
MIMO Configuration 3x3:3 (3 transmit/3 receive chains)
Antennas Internal omni-directional (optional external antenna support)
Security WPA2, 802.1X, AES, Cisco CleanAir, rogue AP detection
Power Options 802.3at PoE+ or 12V DC power adapter
Operating Temp. -20°C to 55°C (-4°F to 131°F)
Management Cisco WLC, Prime Infrastructure, DNA Center, Mobility Express

Ideal Use Cases

  • Corporate offices: High-density Wi-Fi for laptops, smartphones, and IoT devices.

  • Education/Healthcare: Stable coverage for classrooms, lecture halls, and patient monitoring.

  • Industrial/Retail: Reliable connectivity in warehouses, factories, and large retail spaces.
