Dimensions: | 440mm X 220mm X 44mm | Stacking Support: | Yes |
---|---|---|---|
Number Of Ports: | 24/48 | Model: | Switch |
Switching Capacity: | 56Gbps | Vlan Support: | Yes |
Product Type: | Network Switch | Management Interface: | Web, CLI, SNMP |
Qos Support: | Yes | Port Speed: | 10/100/1000 Mbps |
Power Supply: | Internal | Forwarding Rate: | 41.7Mpps |
Power Consumption: | Max. 30W | Poe Support: | Yes |
Highlight: | QoS Gigabit Ruijie Switch,Enhanced Security Gigabit Ruijie Switch,48 Port Gigabit switch |

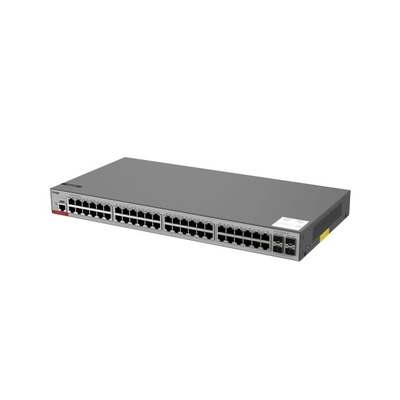

48-Port Gigabit Ruijie Switch With VLAN/QoS & Enhanced Security RG-S2952G-E V3
The Ruijie RG-S2952G-E V3 is a high-performance 48-port Gigabit managed switch designed for enterprise and campus networks, delivering robust Layer 2 features, advanced security controls, and reliable QoS prioritization. Ideal for bandwidth-intensive applications like VoIP, video surveillance, and high-density workstation environments, this switch ensures seamless connectivity with 48× 10/100/1000BASE-T ports and 4× Gigabit SFP slots (combo ports) for fiber uplinks.
High-Speed Switching: 176Gbps switching capacity and 130Mpps forwarding rate for non-blocking performance.
Smart VLAN & QoS: Supports 802.1Q VLAN, Voice VLAN, and DSCP/802.1p-based traffic prioritization to optimize critical applications.
Enterprise Security: Features 802.1X authentication, MAC binding, port isolation, and ACL filtering to prevent unauthorized access.
Network Reliability: STP/RSTP/MSTP and ERPS (sub-50ms failover) for loop prevention and rapid recovery.
Easy Management: Web GUI, CLI, and SNMP/RMON support, compatible with Ruijie SNC for centralized monitoring.
Parameter | Details |
---|---|
Ports | 48× Gigabit RJ45 + 4× SFP (combo) |
Switching Capacity | 176Gbps |
Forwarding Rate | 130Mpps |
VLAN | 802.1Q, Private VLAN, Voice VLAN |
Security | 802.1X, ACLs, Port Security, Storm Control |
Redundancy | ERPS, STP/RSTP/MSTP |
Power Supply | 100-240V AC, 50/60Hz (single or dual PSU options) |
Dimensions | 440×220×44mm (rack-mountable) |
The RG-S2952G-E V3 balances cost-efficiency with enterprise-grade features, making it perfect for SMBs, schools, and mid-sized networks. Its fanless design reduces noise and power consumption, while granular traffic management ensures optimal performance for latency-sensitive tasks.
Ideal Use Cases:
High-density office/campus access layers
Secure networks with BYOD/IoT devices
VoIP and video surveillance deployments
