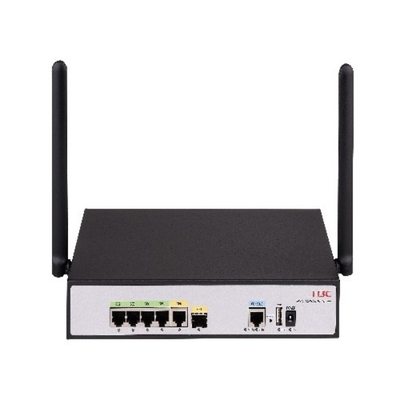

H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs

I'm Online Chat Now

H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs

H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs
H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs

Large Image :  H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs

Product Details:
Brand Name: H3C
Model Number: RT-MSR1104S-W

H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs

Description
Chassis Per Rack: 42 Lead Time: 2-3days
Warranty: 1year Connectivity Technology: WiredCISCO2811
Power Supply Type: External: AC, PoE Sfp Port: 1
Power Module Type: Built-in AC Power Module Type: Router
System Bandwidth: 2.5G (default) 5G, 10G, 20G (upgrade) Qos: Layer 2/3/4 QoS
Redundant Power Supply: N/A Uni: 4GE + 8POTS + 1USB + Wi-Fi
Rack Height: 1 RU Battery Power Supply: 12V DC
Highlight:

H3C Wi-Fi 6 router for SMBs

,

Gigabit ports cloud router

,

SMBs industrial network router

H3C RT-MSR1104S-W Router Wi-Fi 6 Gigabit Ports & Cloud Management For SMBs
Product Attributes
Attribute Value
Chassis Per Rack 42
Lead Time 2-3days
Warranty 1year
Connectivity Technology WiredCISCO2811
Power Supply Type External: AC, PoE
Sfp Port 1
Power Module Type Built-in AC power module
Type Router
System Bandwidth 2.5G (default) 5G, 10G, 20G (upgrade)
Qos Layer 2/3/4 QoS
Redundant Power Supply N/A
Uni 4GE + 8POTS + 1USB + Wi-Fi
Rack Height 1 RU
Battery Power Supply 12V DC
Product Description

The H3C RT-MSR1104S-W is an all-in-one wireless router designed for small and medium businesses (SMBs), branch offices, and retail stores. Combining Wi-Fi 6 technology, multi-gigabit wired ports, and centralized cloud management, it delivers high-speed connectivity, robust security, and simplified IT operations.

Key Features & Benefits
  • Wi-Fi 6 Dual-Band Wireless
    • Supports 802.11ax (2.4GHz & 5GHz) with speeds up to 1.775Gbps, ideal for high-density environments like offices or cafes.
    • OFDMA & MU-MIMO technology ensures stable performance for multiple devices.
  • High-Speed Wired Connectivity
    • 4× Gigabit Ethernet ports (10/100/1000M) with LAN/WAN flexibility for versatile deployments.
    • USB 3.0 port for 4G LTE backup or external storage, ensuring business continuity.
  • Enterprise-Grade Security & VPN
    • Built-in firewall, ACL, and DoS/DDoS protection to safeguard network traffic.
    • Supports IPSec/SSL/L2TP VPN for secure remote access and site-to-site connections.
  • Cloud & Local Management
    • H3C Cloudnet platform enables remote monitoring and batch configuration for multi-site deployments.
    • Intuitive web-based GUI for easy setup and real-time traffic analysis.
  • SD-WAN & QoS Optimization
    • Smart traffic routing prioritizes critical applications (e.g., VoIP, video conferencing).
    • PoE support (optional) to power IP cameras or wireless APs.
Technical Specifications
Category Details
Wireless Dual-band Wi-Fi 6 (2.4GHz: 574Mbps, 5GHz: 1.2Gbps)
Ethernet Ports 4× Gigabit RJ45 (Auto LAN/WAN)
USB Port 1× USB 3.0 (for 4G dongle/storage)
VPN IPSec/SSL/L2TP
Security SPI Firewall, ACL, MAC Filtering
Cloud Management H3C Cloudnet Supported
Power External adapter (PoE optional)
Ideal Use Cases
  • SMBs & Retail: Reliable Wi-Fi 6 for POS systems and guest networks.
  • Branch Offices: Secure VPN tunnels for remote workforce connectivity.
  • Education/Healthcare: High-density wireless for classrooms or clinics.
