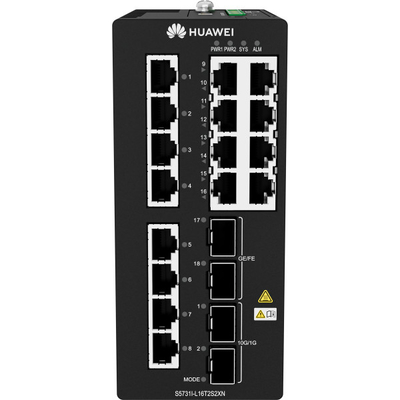

Industrial-Grade Huawei Switch With Wide Temp Range & PoE++ - 16Gbps Ports , Plug-And-Play

Large Image : Industrial-Grade Huawei Switch With Wide Temp Range & PoE++ - 16Gbps Ports , Plug-And-Play

Product Details:

Brand Name:	Huawei
Model Number:	S5731I-L16T2S2XN

Contact Now

Industrial-Grade Huawei Switch With Wide Temp Range & PoE++ - 16Gbps Ports , Plug-And-Play

Description

Link Aggregation:	Yes	Vlans:	4096
Ports:	28 X 10/100/1000Base-T	Vlan Support:	VLAN Mapping, VLAN Stacking, And VLAN Translation
Port:	24	Power Supply:	AC Power Supply
Packet Buffer:	2 MB	Port Speed:	10/100/1000/10000 Mbps
Network Management:	CLI, SNMP, Web-based GUI	Vlan Standards:	IEEE 802.1Q
Model:	S5720-28X-PWR-LI-AC	Multicast Support:	PIM-SM, PIM-SSM, PIM-BIDIR
Security Features:	Port Isolation, MAC Address Authentication, And RADIUS Authentication	Product Warranty:	1 Year Limited Warranty

Industrial-Grade Huawei Switch With Wide Temp Range & PoE++ - 16Gbps Ports , Plug-And-Play

The Industrial-Grade Huawei Switch with a wide temperature range and PoE++ functionality is a game-changer for various industrial networking scenarios. Engineered to endure extreme conditions, it operates seamlessly within a temperature range of -40℃ to 75℃, ensuring reliability in harsh environments, from frigid outdoor settings to sweltering industrial sites. Its IP41 protection rating safeguards against dust intrusion and water droplets, while the wide voltage input of 9.6V to 60V, coupled with multiple power protections, guarantees stable performance across diverse power conditions.

This Huawei Switch stands out with its 16 Gigabit Ethernet ports, 2 Gigabit SFP ports, and 2 10 Gigabit SFP+ ports, offering a substantial data transfer capacity. With a high switching capacity of 432Gbps and a packet forwarding rate of 114Mpps, it efficiently handles large volumes of data, ideal for bandwidth-intensive applications like industrial automation. The support for STP/RSTP standard ring network protocols and link aggregation ensures network-level reliability with a 50ms link switching performance. It also prioritizes mainstream industrial protocols such as PROFINET, Ethernet/IP, and GOOSE for seamless industrial communication.

One of its most convenient features is the plug-and-play functionality. The interfaces auto-adapt, and industrial protocols are recognized automatically, eliminating the need for complex VLAN and ring network configurations. Moreover, its local Web-based operation and maintenance via a graphical interface make management effortless, even for non-experts. The innovative iPCA network packet conservation algorithm enables precise service quality perception and rapid fault location, enhancing overall network efficiency.

Parameter	Specification
Model	S5731I-L16T2S2XN
Ports	16 Gigabit Ethernet, 2 Gigabit SFP, 2 10 Gigabit SFP+
Temperature Range	-40℃ - 75℃
Protection Rating	IP41
Voltage Input	9.6V - 60V
Switching Capacity	432Gbps
Packet Forwarding Rate	114Mpps

Whether you're building a large-scale industrial network or seeking to upgrade an existing one, this Huawei Switch delivers unparalleled performance, reliability, and ease of use.
