Data Transfer Rate: | 1.75Gbps | Poe Power Supply: | 802.3af/at, 48V DC |
---|---|---|---|
Antenna Gain: | 2.4 GHz: 4 DBi; 5 GHz: 5 DBi | Model: | Wireless AP |
Wireless Standards: | IEEE 802.11a/b/g/n/ac | Dimensions: | 220 Mm X 160 Mm X 40 Mm |
Wireless Standard: | 802.11ac Wave 2 | Power Supply: | AC: 100V-240V, 50/60Hz |
Security Protocols: | WPA/WPA2, WEP, 802.1X, MAC Address Filtering | Connectivity: | Wireless |
Wireless Frequency Band: | 2.4GHz And 5GHz | Storage Temperature: | -40°C To +70°C |
Maximum Transmission Rate: | 1.3Gbps | Ethernet Ports: | 2x GE |

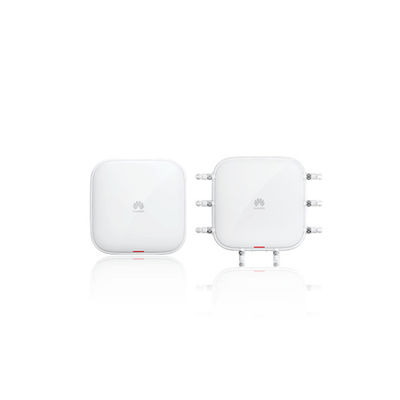

Huawei Wireless AP AirEngine 6760-X1 : Wi-Fi 6 , Triple-Radio & AI-Optimized For Enterprise
The Huawei AirEngine 6760-X1 is a high-performance Wi-Fi 6 (802.11ax) wireless access point designed for enterprise-grade connectivity, delivering ultra-fast speeds, AI-driven optimization, and reliable coverage for high-density environments. With triple-radio design, 6.75Gbps throughput, and Huawei’s intelligent antenna technology, this AP ensures seamless wireless experiences for offices, campuses, and smart facilities.
✔ Wi-Fi 6 Triple-Radio Design – Supports 1×2.4GHz (4×4) + 2×5GHz (4×4 each), enabling 6.75Gbps total bandwidth for lag-free 4K streaming, video conferencing, and IoT applications.
✔ 160MHz Ultra-Wide Bandwidth – Doubles channel capacity for faster data transfer, ideal for AR/VR and cloud-based workloads.
✔ AI-Optimized Performance – Huawei’s AI Radio & Intelligent Antenna dynamically adjusts signals to reduce interference and extend coverage by 20%.
✔ High-Density Connectivity – Supports 256+ concurrent users with MU-MIMO & OFDMA, perfect for stadiums, conference halls, and smart factories.
✔ Enterprise-Grade Security – WPA3 encryption, radar-aware channel selection, and hardware security chip protect against cyber threats.
✔ IoT & Multi-Service Ready – Optional Bluetooth 5.1 & RFID for asset tracking and smart building integration.
Parameter | Specification |
---|---|
Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
Max Speed | 6.75Gbps (2.4G + 2×5G) |
MIMO | 4×4:4 (All Radios) |
Frequency Bands | 2.4GHz + 5GHz (Dual 5GHz) |
Ethernet Ports | 1×10GE + 1×2.5GE (PoE++ Supported) |
Concurrent Users | Up to 256 |
Security | WPA3, AES Encryption, Secure Boot |
Management | Huawei iMaster NCE-Campus, Cloud-Based |
Future-Proof Wi-Fi 6 Performance – Ideal for bandwidth-heavy applications like cloud computing and HD video.
AI-Driven Efficiency – Self-optimizing networks reduce manual tuning by 30%.
Scalable for Smart Enterprises – Supports seamless roaming, IoT expansion, and zero-touch provisioning.
Deploy the Huawei AirEngine 6760-X1 to transform your enterprise wireless network with cutting-edge speed, intelligence, and reliability. #WiFi6 #EnterpriseNetworking #HuaweiWirelessAP
